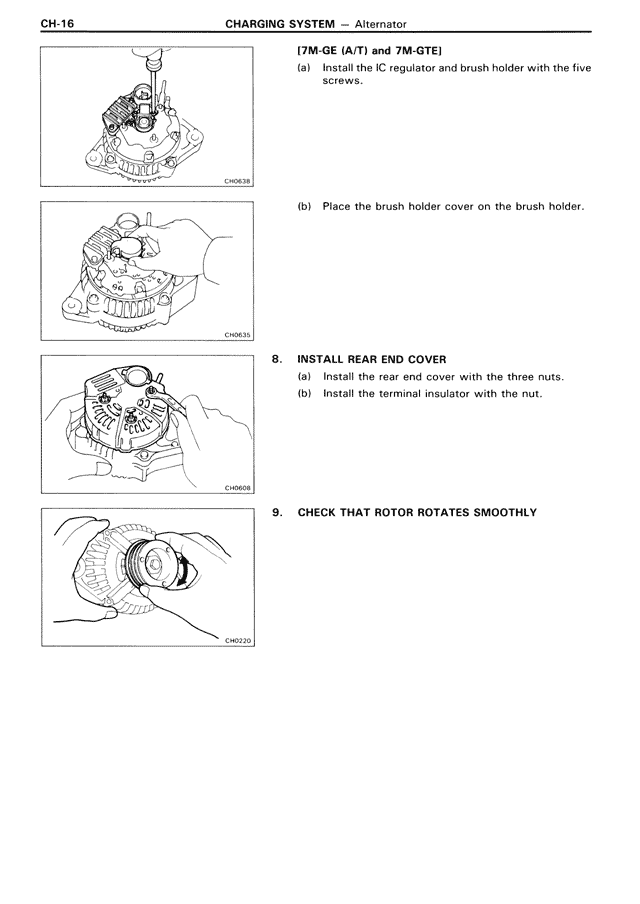

CH-16 CHARGING SYSTEM — Alternator
[7M-GE (A/T) and 7M-GTE]
(a) Install the IC regulator and brush holder with the five
screws.
(b) Place the brush holder cover on the brush holder.
8. INSTALL REAR END COVER
(a) Install the rear end cover with the three nuts.
(b) Install the terminal insulator with the nut.
9. CHECK THAT ROTOR ROTATES SMOOTHLY
