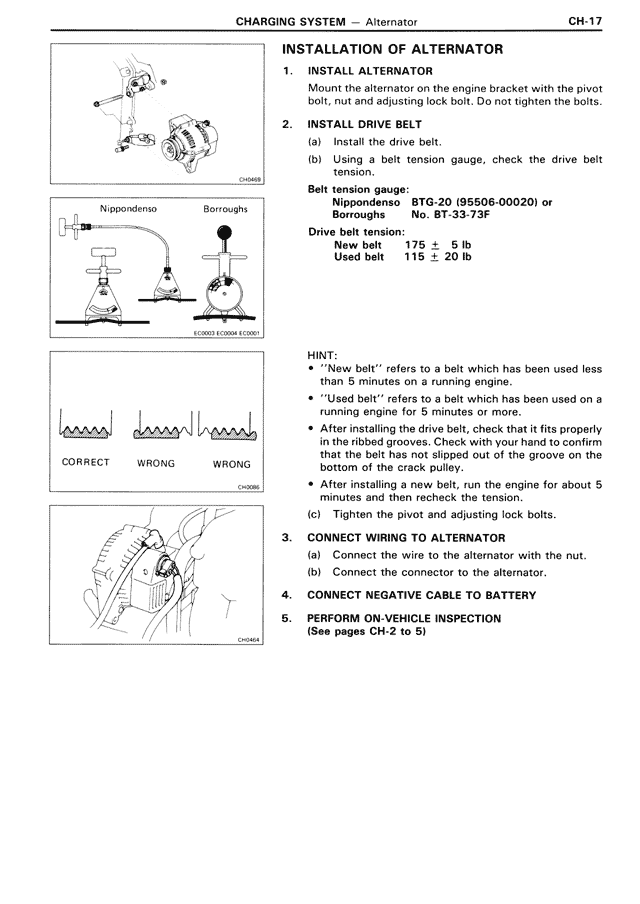

INSTALLATION OF ALTERNATOR
1. INSTALL ALTERNATOR
Mount the alternator on the engine bracket with the pivot bolt, nut and adjusting lock bolt. Do not tighten the bolts.
2. INSTALL DRIVE BELT
(a) Install the drive belt.
(b) Using a belt tension gauge, check the drive belt tension.
Belt tension gauge:
Nippondenso BTG-20 (95506-00020) or
Borroughs No. BT-33-73F
Drive belt tension:
New belt 175 ± 5 lb
Used belt 115 ± 20 lb
HINT:
• "New belt" refers to a belt which has been used less than 5 minutes or more.
• "Used belt" refers to a belt which has been used on a running engine for 5 minutes or more.
• After installing the drive belt, check that it fits properly in the ribbed grooves. Check with your hand to confirm that the belt has not slipped out of the groove on the bottom of the crack pulley.
• After installing a new belt, run the engine for about 5 minutes and then recheck the tension.
(c) Tighten the pivot and adjusting lock bolts.
3. CONNECT WIRING TO ALTERNATOR
(a) Connect the wire to the alternator with the nut.
(b) Connect the connector to the alternator.
4. CONNECT NEGATIVE CABLE TO BATTERY
5. PERFORM ON-VEHICLE INSPECTION
(See pages CH-2 to 5)
