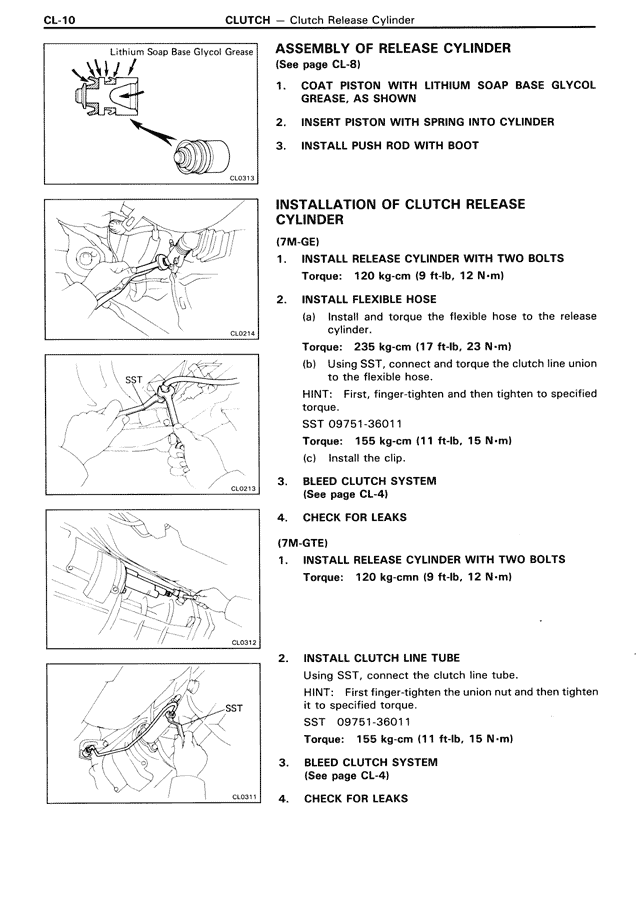

CL-10 CLUTCH — Clutch Release Cylinder
Lithium Soap Base Glycol Grease
CL0311
ASSEMBLY OF RELEASE CYLINDER
(See page CL-8)
1. COAT PISTON WITH LITHIUM SOAP BASE GLYCOL
GREASE, AS SHOWN
2. INSERT PISTON WITH SPRING INTO CYLINDER
3. INSTALL PUSH ROD WITH BOOT
INSTALLATION OF CLUTCH RELEASE
CYLINDER
(7M-GE)
1. INSTALL RELEASE CYLINDER WITH TWO BOLTS
Torque: 120 kg-cm (9 ft-lb, 12 N-m)
2. INSTALL FLEXIBLE HOSE
(a) Install and torque the flexible hose to the release
cylinder.
Torque: 235 kg-cm (17 ft-lb, 23 N-m)
(b) Using SST, connect and torque the clutch line union
to the flexible hose.
HINT: First, finger-tighten and then tighten to specified
torque.
SST 09751-36011
Torque: 155 kg-cm (11 ft-lb, 15 N-m)
(c) Install the clip.
3. BLEED CLUTCH SYSTEM
(See page CL-4)
4. CHECK FOR LEAKS
(7M-GTE)
1. INSTALL RELEASE CYLINDER WITH TWO BOLTS
Torque: 120 kg-cmn (9 ft-lb, 12 N-m)
2. INSTALL CLUTCH LINE TUBE
Using SST, connect the clutch line tube.
HINT: First finger-tighten the union nut and then tighten
it to specified torque.
SST 09751-36011
Torque: 155 kg-cm (11 ft-lb, 15 N-m)
3. BLEED CLUTCH SYSTEM
(See page CL-4)
4. CHECK FOR LEAKS
CL0214
SST
CL0213
CL0317
SST
CL0311
