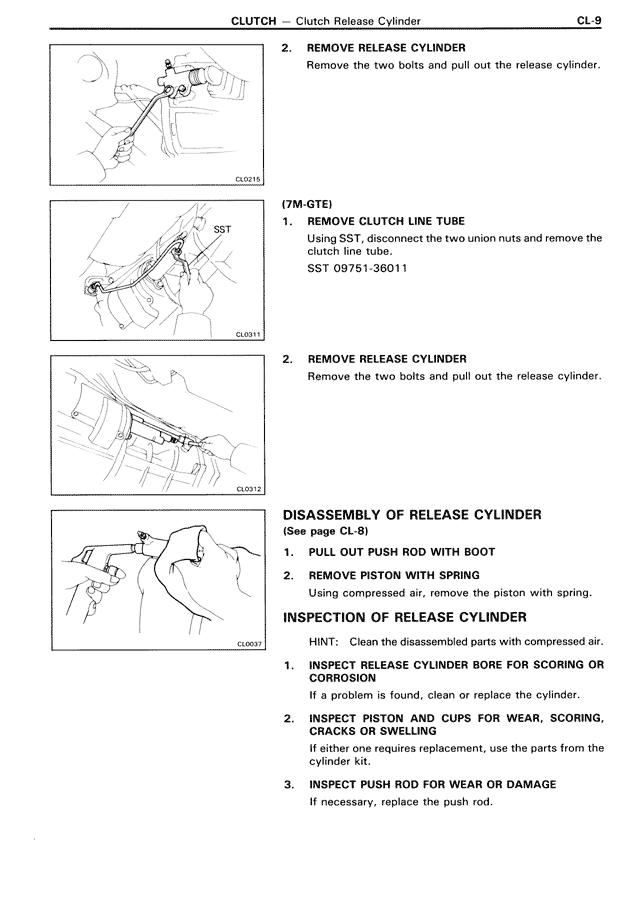

2. REMOVE RELEASE CYLINDER Remove the two bolts and pull out the release cylinder. (7M-GTE) 1. REMOVE CLUTCH LINE TUBE Using SST, disconnect the two union nuts and remove the clutch line tube. SST 09751-36011 2. REMOVE RELEASE CYLINDER Remove the two bolts and pull out the release cylinder. DISASSEMBLY OF RELEASE CYLINDER (See page CL-8) 1. PULL OUT PUSH ROD WITH BOOT 2. REMOVE PISTON WITH SPRING Using compressed air, remove the piston with spring. INSPECTION OF RELEASE CYLINDER HINT: Clean the disassembled parts with compressed air. 1. INSPECT RELEASE CYLINDER BORE FOR SCORING OR CORROSION If a problem is found, clean or replace the cylinder. 2. INSPECT PISTON AND CUPS FOR WEAR, SCORING, CRACKS OR SWELLING If either one requires replacement, use the parts from the cylinder kit. 3. INSPECT PUSH ROD FOR WEAR OR DAMAGE If necessary, replace the push rod.
