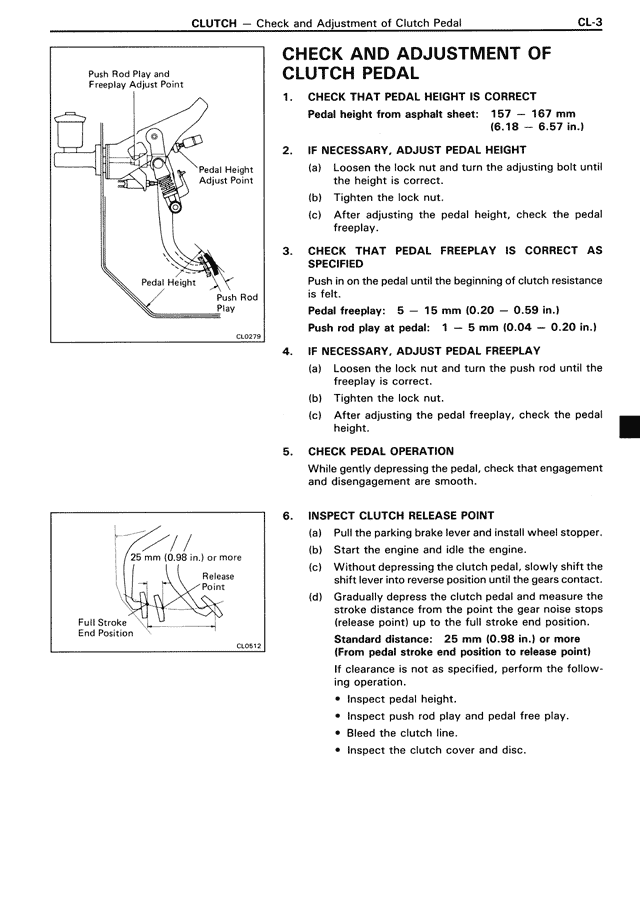

CHECK AND ADJUSTMENT OF CLUTCH PEDAL 1. CHECK THAT PEDAL HEIGHT IS CORRECT Pedal height from asphalt sheet: 157 — 167 mm (6.18 — 6.57 in.) 2. IF NECESSARY, ADJUST PEDAL HEIGHT (a) Loosen the lock nut and turn the adjusting bolt until the height is correct. (b) Tighten the lock nut. (c) After adjusting the pedal height, check the pedal freeplay. 3. CHECK THAT PEDAL FREEPLAY IS CORRECT AS SPECIFIED Push in on the pedal until the beginning of clutch resistance is felt. Pedal freeplay: 5 — 15 mm (0.20 — 0.59 in.) Push rod play at pedal: 1 — 5 mm (0.04 — 0.20 in.) 4. IF NECESSARY, ADJUST PEDAL FREEPLAY (a) Loosen the lock nut and turn the push rod until the freeplay is correct. (b) Tighten the lock nut. (c) After adjusting the pedal freeplay, check the pedal height. 5. CHECK PEDAL OPERATION While gently depressing the pedal, check that engagement and disengagement are smooth. 6. INSPECT CLUTCH RELEASE POINT (a) Pull the parking brake lever and install wheel stopper. (b) Start the engine and idle the engine. (c) Without depressing the clutch pedal, slowly shift the shift lever into reverse position until the gears contact. (d) Gradually depress the clutch pedal and measure the stroke distance from the point the gear noise stops (release point) up to the full stroke end position. Standard distance: 25 mm (0.98 in.) or more (From pedal stroke end position to release point) If clearance is not as specified, perform the following operation: • Inspect pedal height. • Inspect push rod play and pedal free play. • Bleed the clutch line. • Inspect the clutch cover and disc.
