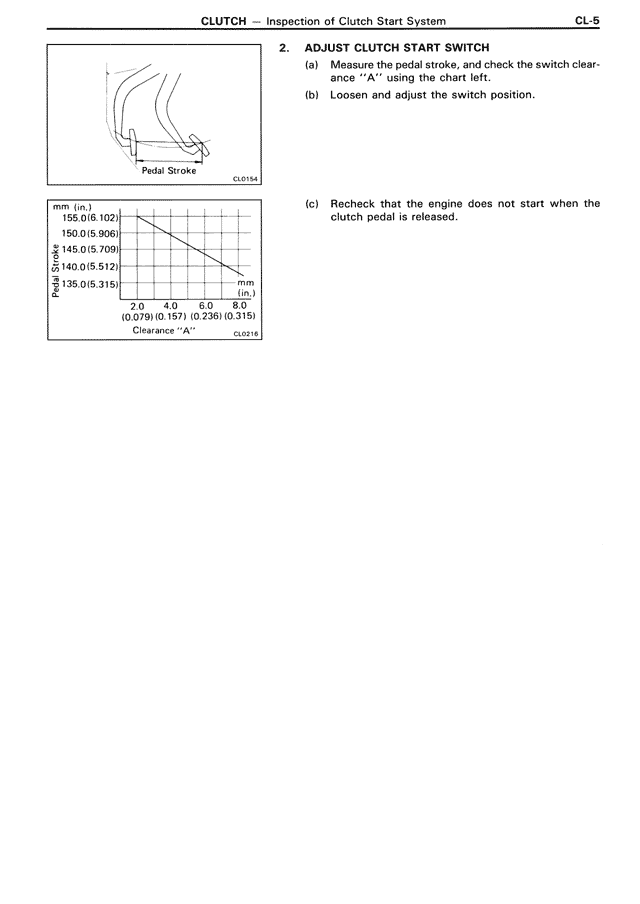

2. ADJUST CLUTCH START SWITCH
(a) Measure the pedal stroke, and check the switch clearance "A" using the chart left.
(b) Loosen and adjust the switch position.
(c) Recheck that the engine does not start when the clutch pedal is released.
Pedal Stroke
mm (in.)
155 (5.102)
150 (5.906)
145 (5.709)
140 (5.512)
135 (5.315)
mm
(in.)
2 4 6 8
(0.079) (0.157) (0.236) (0.315)
Clearance "A"
Pedal Stroke
CL0154
CL0215
