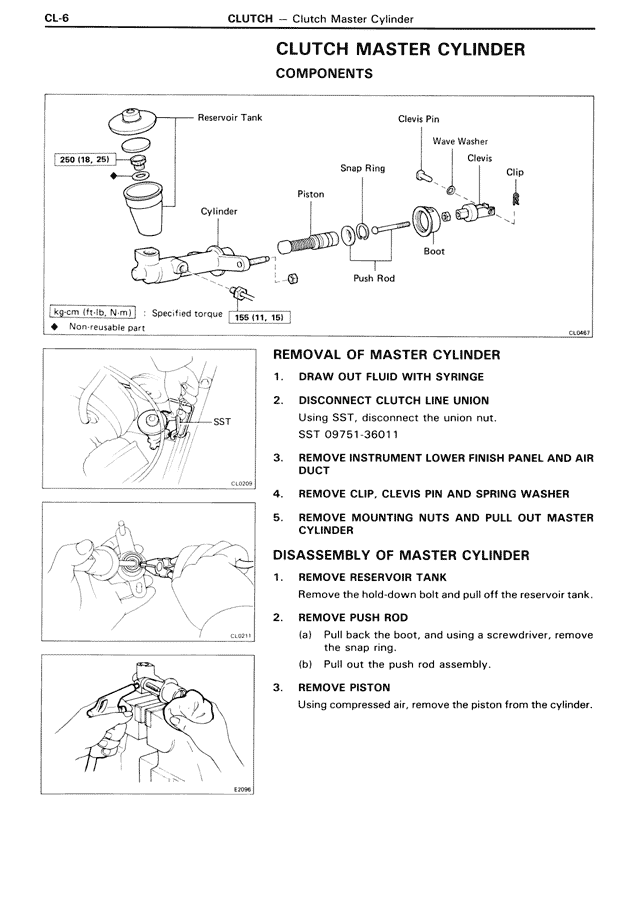

CLUTCH MASTER CYLINDER COMPONENTS Reservoir Tank Clevis Pin Wave Washer 260 (18, 26) Clevis Snap Ring Clip Piston Boot Cylinder Push Rod kg.cm (ft-lb, N.m) Specified torque 155 (11, 15) Non-reusable part CLU001 REMOVAL OF MASTER CYLINDER 1. DRAW OUT FLUID WITH SYRINGE 2. DISCONNECT CLUTCH LINE UNION Using SST, disconnect the union nut. SST 09751-36011 SST CLU009 3. REMOVE INSTRUMENT LOWER FINISH PANEL AND AIR DUCT 4. REMOVE CLIP, CLEVIS PIN AND SPRING WASHER 5. REMOVE MOUNTING NUTS AND PULL OUT MASTER CYLINDER CLU011 DISASSEMBLY OF MASTER CYLINDER 1. REMOVE RESERVOIR TANK Remove the hold-down bolt and pull off the reservoir tank. 2. REMOVE PUSH ROD (a) Pull back the boot, and using a screwdriver, remove the snap ring. (b) Pull out the push rod assembly. 3. REMOVE PISTON Using compressed air, remove the piston from the cylinder. EU96
