Electrical Wiring Diagrams
/
p.6
← 005
D · 006
007 →

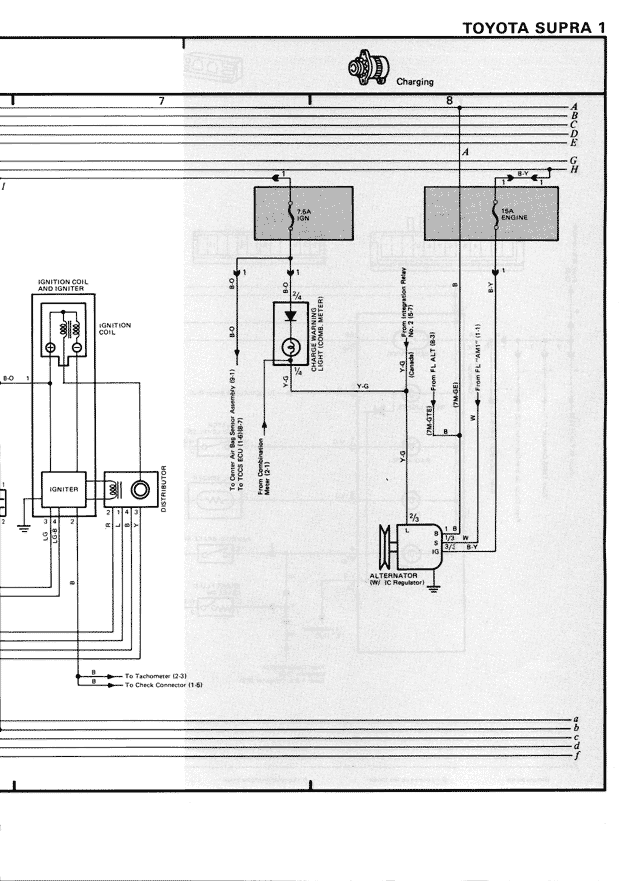

TOYOTA SUPRA 1 Charging 7 8 A B E C A H IGNITION COIL AND IGNITER IGNITION COIL IGNITER B-D To Tachometer (2.3) To Check Connector (1.6) ALTERNATOR (Trico Connector) A B C D J
