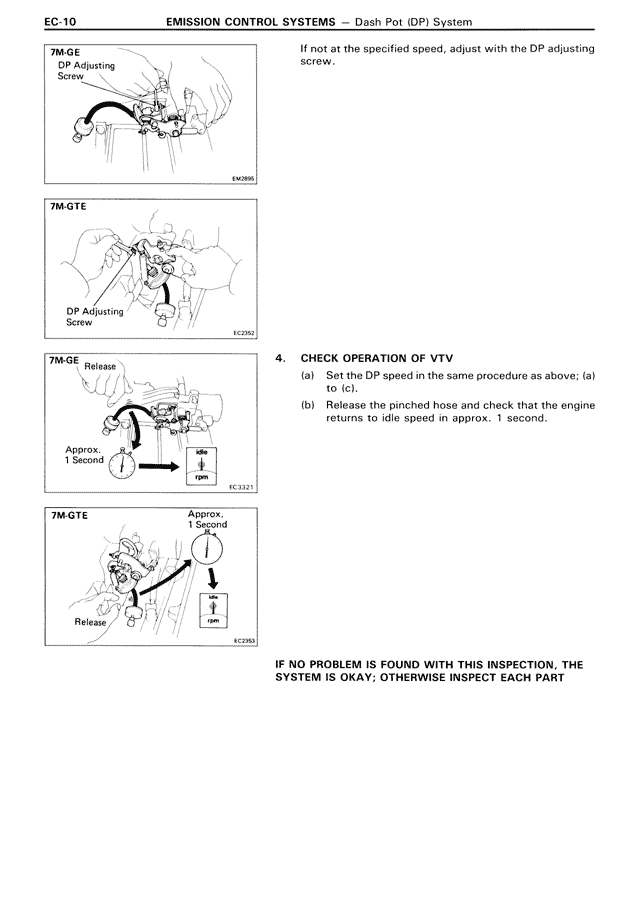

EC-10 EMISSION CONTROL SYSTEMS — Dash Pot (DP) System 7M-GE DP Adjusting Screw If not at the specified speed, adjust with the DP adjusting screw. EK2855 7M-GTE DP Adjusting Screw EC2952 7M-GE Release Approx. 1 Second rpm EC3221 7M-GTE Approx. 1 Second Release rpm EC2953 4. CHECK OPERATION OF VTV (a) Set the DP speed in the same procedure as above; (a) to (c). (b) Release the pinched hose and check that the engine returns to idle speed in approx. 1 second. IF NO PROBLEM IS FOUND WITH THIS INSPECTION, THE SYSTEM IS OKAY; OTHERWISE INSPECT EACH PART
