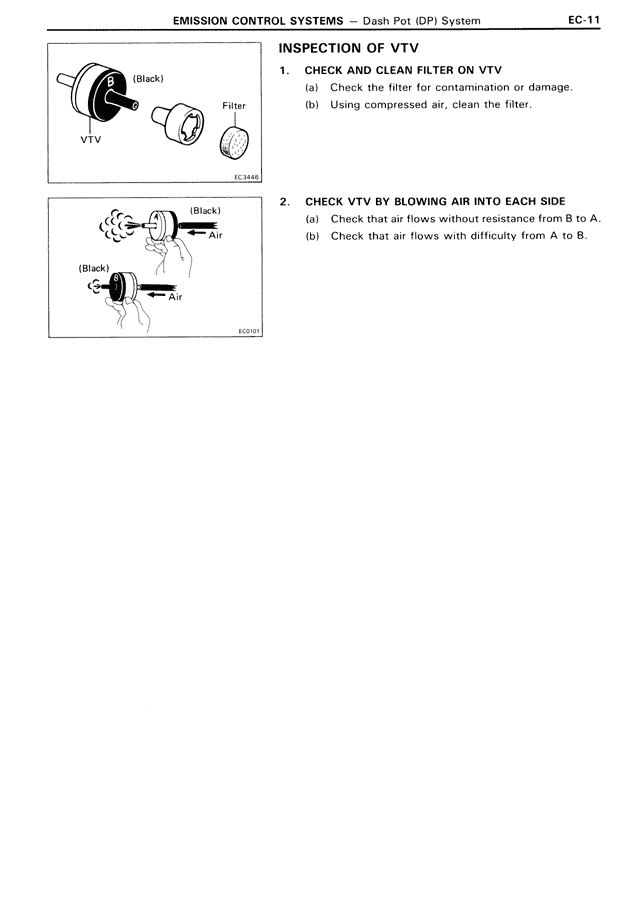

EMISSION CONTROL SYSTEMS — Dash Pot (DP) System EC-11
INSPECTION OF VTV
(Black)
VTV
Filter
EC-3433
1. CHECK AND CLEAN FILTER ON VTV
(a) Check the filter for contamination or damage.
(b) Using compressed air, clean the filter.
(Black)
Air
(Black)
Air
EC-0151
2. CHECK VTV BY BLOWING AIR INTO EACH SIDE
(a) Check that air flows without resistance from B to A.
(b) Check that air flows with difficulty from A to B.
