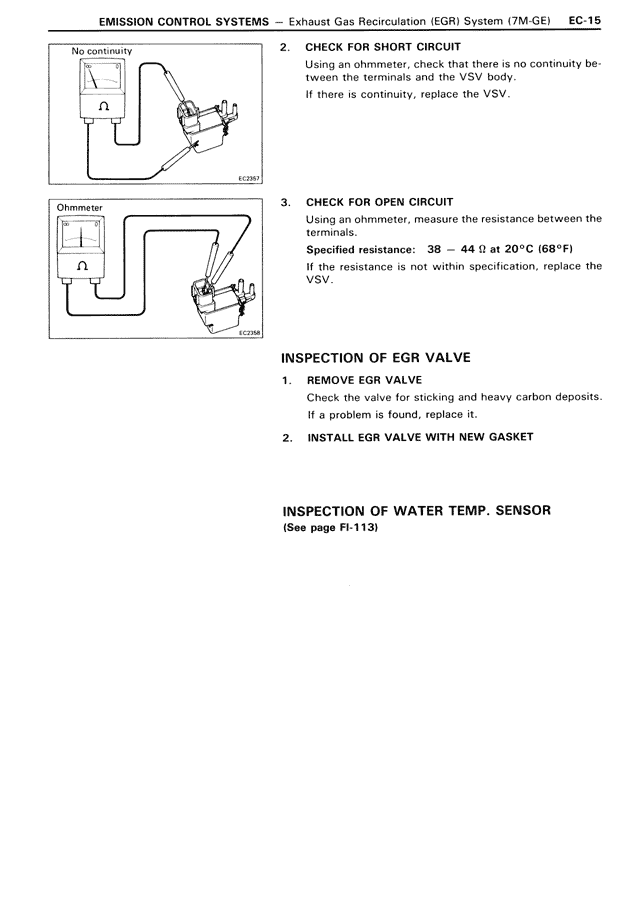

EMISSION CONTROL SYSTEMS — Exhaust Gas Recirculation (EGR) System (7M-GE) EC-15
No continuity
[Diagram showing ohmmeter connected to VSV]
EC2267
2. CHECK FOR SHORT CIRCUIT
Using an ohmmeter, check that there is no continuity between the terminals and the VSV body.
If there is continuity, replace the VSV.
Ohmmeter
[Diagram showing ohmmeter connected to VSV]
EC2268
3. CHECK FOR OPEN CIRCUIT
Using an ohmmeter, measure the resistance between the terminals.
Specified resistance: 38 — 44 Ω at 20°C (68°F)
If the resistance is not within specification, replace the VSV.
INSPECTION OF EGR VALVE
1. REMOVE EGR VALVE
Check the valve for sticking and heavy carbon deposits.
If a problem is found, replace it.
2. INSTALL EGR VALVE WITH NEW GASKET
INSPECTION OF WATER TEMP. SENSOR
(See page FI-113)
