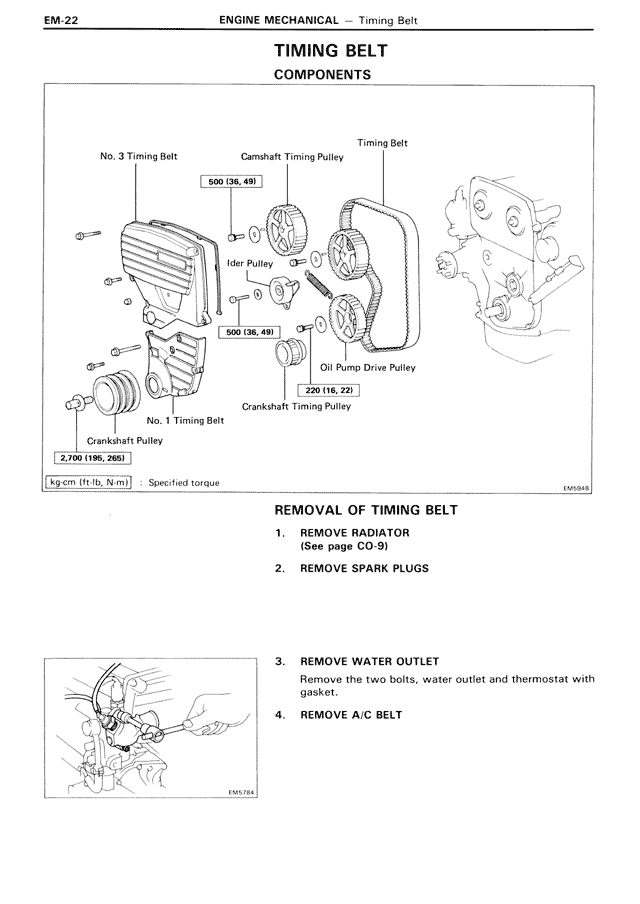

TIMING BELT COMPONENTS No. 3 Timing Belt Timing Belt Camshaft Timing Pulley 500 [36, 49] Idler Pulley 500 [36, 49] Oil Pump Drive Pulley 220 [16, 22] No. 1 Timing Belt Crankshaft Timing Pulley Crankshaft Pulley 2,700 [196, 266] kg·cm [ft·lb, N·m] : Specified torque EM308B REMOVAL OF TIMING BELT 1. REMOVE RADIATOR (See page CO-9) 2. REMOVE SPARK PLUGS 3. REMOVE WATER OUTLET Remove the two bolts, water outlet and thermostat with gasket. 4. REMOVE A/C BELT EM376J
