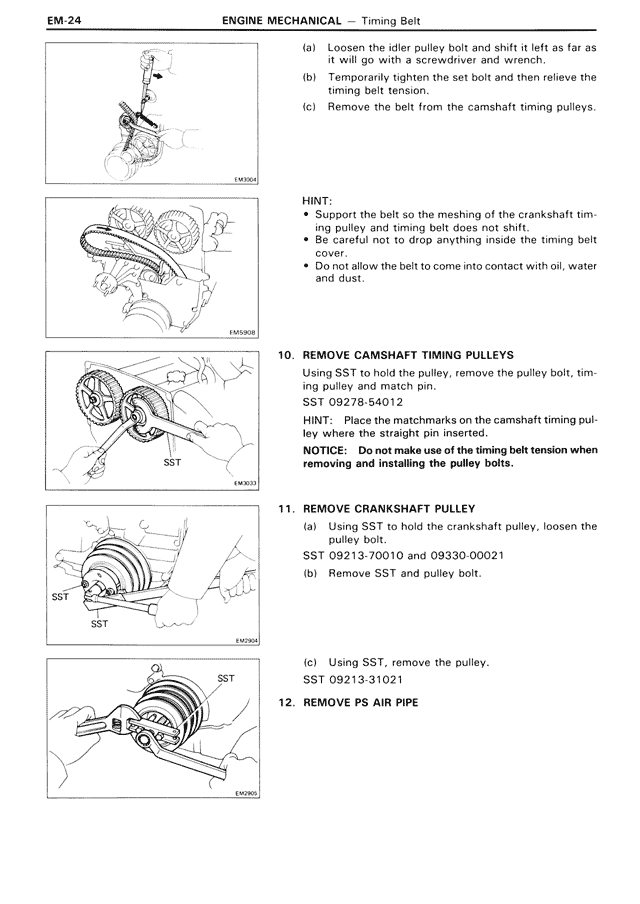

EM-24 ENGINE MECHANICAL — Timing Belt (a) Loosen the idler pulley bolt and shift it left as far as it will go with a screwdriver and wrench. (b) Temporarily tighten the set bolt and then relieve the timing belt tension. (c) Remove the belt from the camshaft timing pulleys. HINT: • Support the belt so the meshing of the crankshaft timing pulley and timing belt does not shift. • Be careful not to drop anything inside the timing belt cover. • Do not allow the belt to come into contact with oil, water and dust. 10. REMOVE CAMSHAFT TIMING PULLEYS Using SST to hold the pulley, remove the pulley bolt, timing pulley and match pin. SST 09278-54012 HINT: Place the matchmarks on the camshaft timing pulleys where the straight pin inserted. NOTICE: Do not make use of the timing belt tension when removing and installing the pulley bolts. 11. REMOVE CRANKSHAFT PULLEY (a) Using SST to hold the crankshaft pulley, loosen the pulley bolt. SST 09213-70010 and 09330-00021 (b) Remove SST and pulley bolt. (c) Using SST, remove the pulley. SST 09213-31021 12. REMOVE PS AIR PIPE
