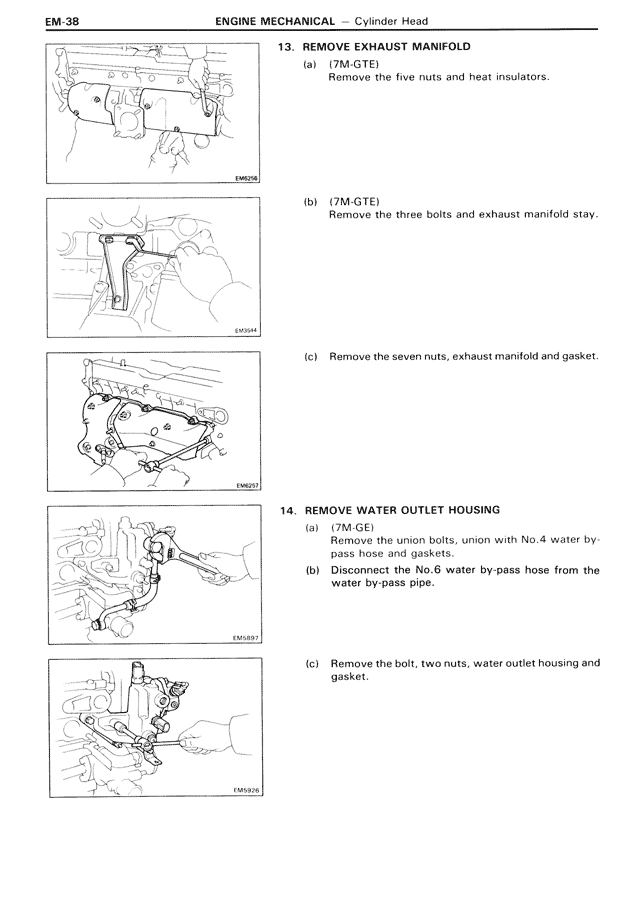

13. REMOVE EXHAUST MANIFOLD
(a) (7M-GTE)
Remove the five nuts and heat insulators.
(b) (7M-GTE)
Remove the three bolts and exhaust manifold stay.
(c) Remove the seven nuts, exhaust manifold and gasket.
14. REMOVE WATER OUTLET HOUSING
(a) (7M-GE)
Remove the union bolts, union with No.4 water by-pass hose and gaskets.
(b) Disconnect the No.6 water by-pass hose from the water by-pass pipe.
(c) Remove the bolt, two nuts, water outlet housing and gasket.
