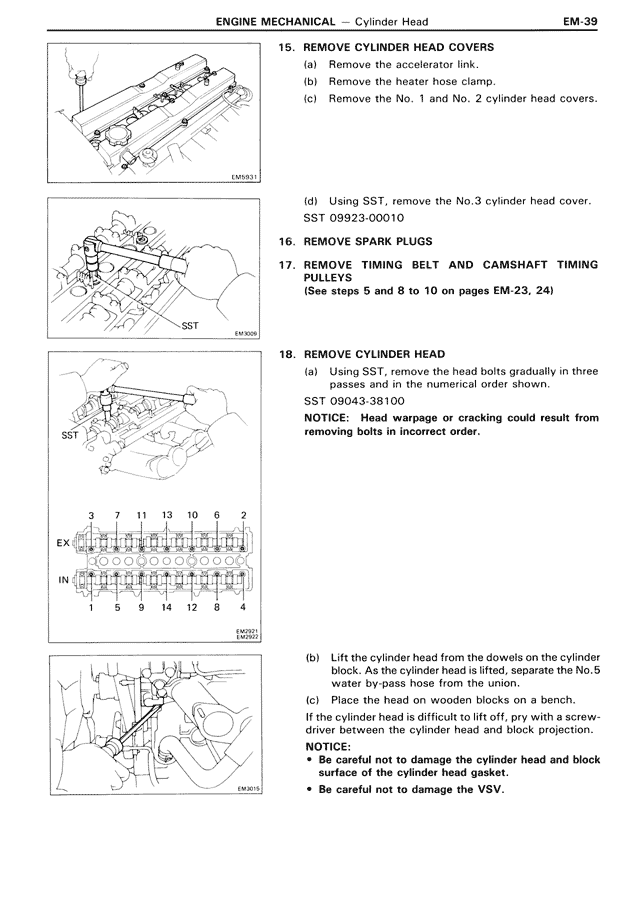

15. REMOVE CYLINDER HEAD COVERS
(a) Remove the accelerator link.
(b) Remove the heater hose clamp.
(c) Remove the No. 1 and No. 2 cylinder head covers.
(d) Using SST, remove the No.3 cylinder head cover.
SST 09923-00010
16. REMOVE SPARK PLUGS
17. REMOVE TIMING BELT AND CAMSHAFT TIMING PULLEYS
(See steps 5 and 8 to 10 on pages EM-23, 24)
18. REMOVE CYLINDER HEAD
(a) Using SST, remove the head bolts gradually in three passes and in the numerical order shown.
SST 09043-38100
NOTICE: Head warpage or cracking could result from removing bolts in incorrect order.
EX
3 7 11 13 10 6 2
IN
1 5 9 14 12 8 4
(b) Lift the cylinder head from the dowels on the cylinder block. As the cylinder head is lifted, separate the No.5 water by-pass hose from the union.
(c) Place the head on wooden blocks on a bench.
If the cylinder head is difficult to lift off, pry with a screw-driver between the cylinder head and block projection.
NOTICE:
• Be careful not to damage the cylinder head and block surface of the cylinder head gasket.
• Be careful not to damage the VSV.
