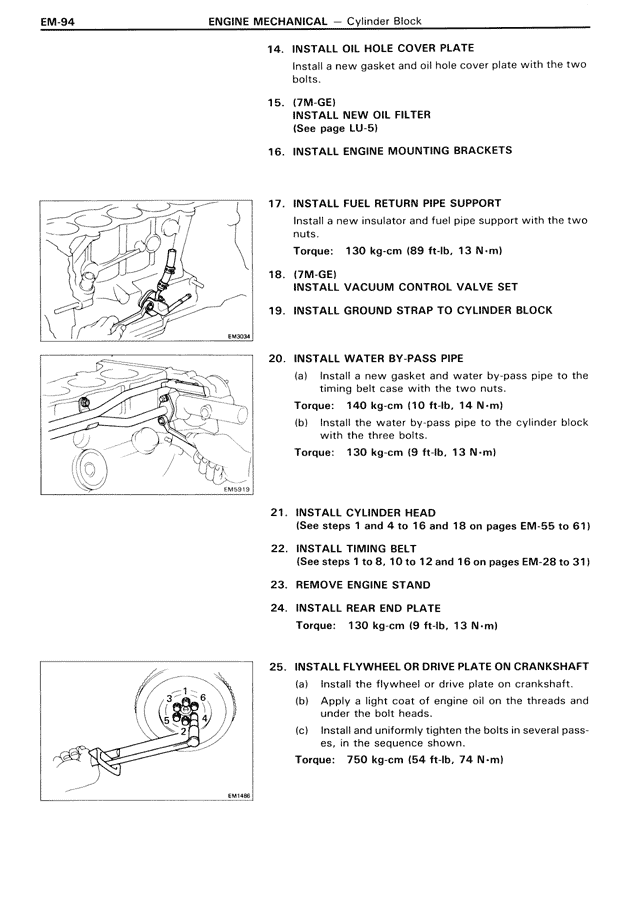

14. INSTALL OIL HOLE COVER PLATE
Install a new gasket and oil hole cover plate with the two
bolts.
15. (7M-GE)
INSTALL NEW OIL FILTER
(See page LU-5)
16. INSTALL ENGINE MOUNTING BRACKETS
17. INSTALL FUEL RETURN PIPE SUPPORT
Install a new insulator and fuel pipe support with the two
nuts.
Torque: 130 kg-cm (89 ft-lb, 13 N-m)
18. (7M-GE)
INSTALL VACUUM CONTROL VALVE SET
19. INSTALL GROUND STRAP TO CYLINDER BLOCK
20. INSTALL WATER BY-PASS PIPE
(a) Install a new gasket and water by-pass pipe to the
timing belt case with the two nuts.
Torque: 140 kg-cm (10 ft-lb, 14 N-m)
(b) Install the water by-pass pipe to the cylinder block
with the three bolts.
Torque: 130 kg-cm (9 ft-lb, 13 N-m)
21. INSTALL CYLINDER HEAD
(See steps 1 and 4 to 16 and 18 on pages EM-55 to 61)
22. INSTALL TIMING BELT
(See steps 1 to 8, 10 to 12 and 16 on pages EM-28 to 31)
23. REMOVE ENGINE STAND
24. INSTALL REAR END PLATE
Torque: 130 kg-cm (9 ft-lb, 13 N-m)
25. INSTALL FLYWHEEL OR DRIVE PLATE ON CRANKSHAFT
(a) Install the flywheel or drive plate on crankshaft.
(b) Apply a light coat of engine oil on the threads and
under the bolt heads.
(c) Install and uniformly tighten the bolts in several pass-
es, in the sequence shown.
Torque: 750 kg-cm (54 ft-lb, 74 N-m)
