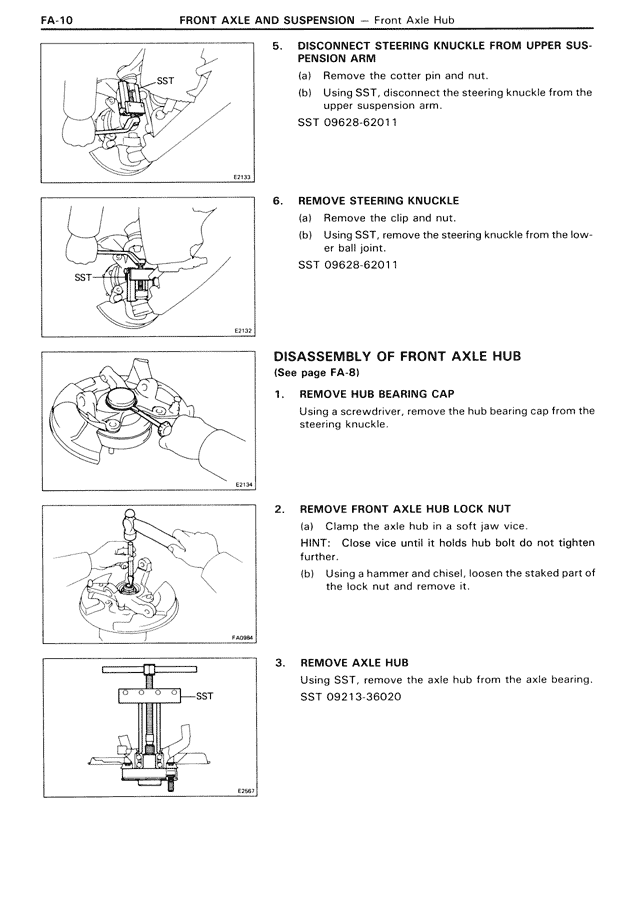

FA-10
FRONT AXLE AND SUSPENSION — Front Axle Hub
5. DISCONNECT STEERING KNUCKLE FROM UPPER SUS-
PENSION ARM
(a) Remove the cotter pin and nut.
(b) Using SST, disconnect the steering knuckle from the
upper suspension arm.
SST 09628-62011
6. REMOVE STEERING KNUCKLE
(a) Remove the clip and nut.
(b) Using SST, remove the steering knuckle from the low-
er ball joint.
SST 09628-62011
DISASSEMBLY OF FRONT AXLE HUB
(See page FA-8)
1. REMOVE HUB BEARING CAP
Using a screwdriver, remove the hub bearing cap from the
steering knuckle.
2. REMOVE FRONT AXLE HUB LOCK NUT
(a) Clamp the axle hub in a soft jaw vice.
HINT: Close vice until it holds hub bolt do not tighten
further.
(b) Using a hammer and chisel, loosen the staked part of
the lock nut and remove it.
3. REMOVE AXLE HUB
Using SST, remove the axle hub from the axle bearing.
SST 09213-36020
