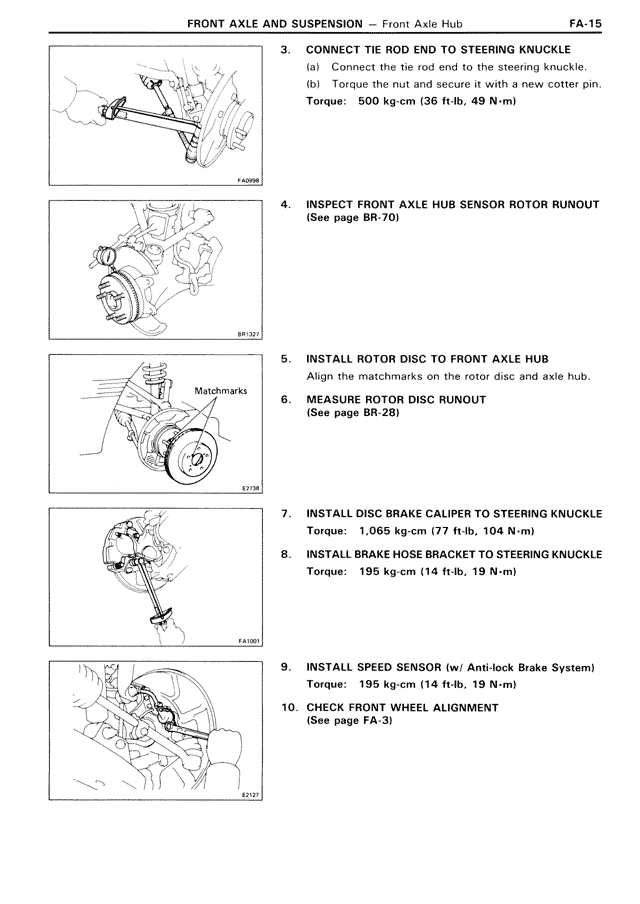

3. CONNECT TIE ROD END TO STEERING KNUCKLE (a) Connect the rod end to the steering knuckle. (b) Torque the nut and secure it with a new cotter pin. Torque: 500 kg-cm (36 ft-lb, 49 N·m) 4. INSPECT FRONT AXLE HUB SENSOR ROTOR RUNOUT (See page BR-70) 5. INSTALL ROTOR DISC TO FRONT AXLE HUB Align the matchmarks on the rotor disc and axle hub. 6. MEASURE ROTOR DISC RUNOUT (See page BR-28) 7. INSTALL DISC BRAKE CALIPER TO STEERING KNUCKLE Torque: 1,065 kg-cm (77 ft-lb, 104 N·m) 8. INSTALL BRAKE HOSE BRACKET TO STEERING KNUCKLE Torque: 195 kg-cm (14 ft-lb, 19 N·m) 9. INSTALL SPEED SENSOR (w/ Anti-lock Brake System) Torque: 195 kg-cm (14 ft-lb, 19 N·m) 10. CHECK FRONT WHEEL ALIGNMENT (See page FA-3)
