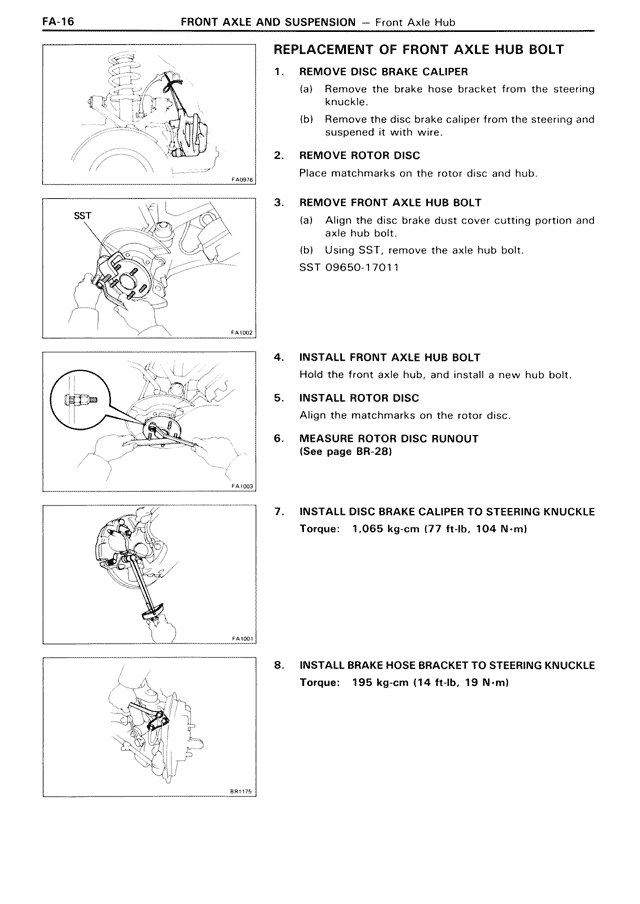

FA-16
FRONT AXLE AND SUSPENSION — Front Axle Hub
REPLACEMENT OF FRONT AXLE HUB BOLT
1. REMOVE DISC BRAKE CALIPER
(a) Remove the brake hose bracket from the steering knuckle.
(b) Remove the disc brake caliper from the steering and suspend it with wire.
2. REMOVE ROTOR DISC
Place matchmarks on the rotor disc and hub.
3. REMOVE FRONT AXLE HUB BOLT
(a) Align the disc brake caliper dust cover notting portion and axle hub bolt.
(b) Using SST, remove the axle hub bolt.
SST 09650-17011
4. INSTALL FRONT AXLE HUB BOLT
Hold the front axle hub, and install a new hub bolt.
5. INSTALL ROTOR DISC
Align the matchmarks on the rotor disc.
6. MEASURE ROTOR DISC RUNOUT
(See page BR-28)
7. INSTALL DISC BRAKE CALIPER TO STEERING KNUCKLE
Torque: 1,065 kg-cm (77 ft-lb, 104 N-m)
8. INSTALL BRAKE HOSE BRACKET TO STEERING KNUCKLE
Torque: 195 kg-cm (14 ft-lb, 19 N-m)
