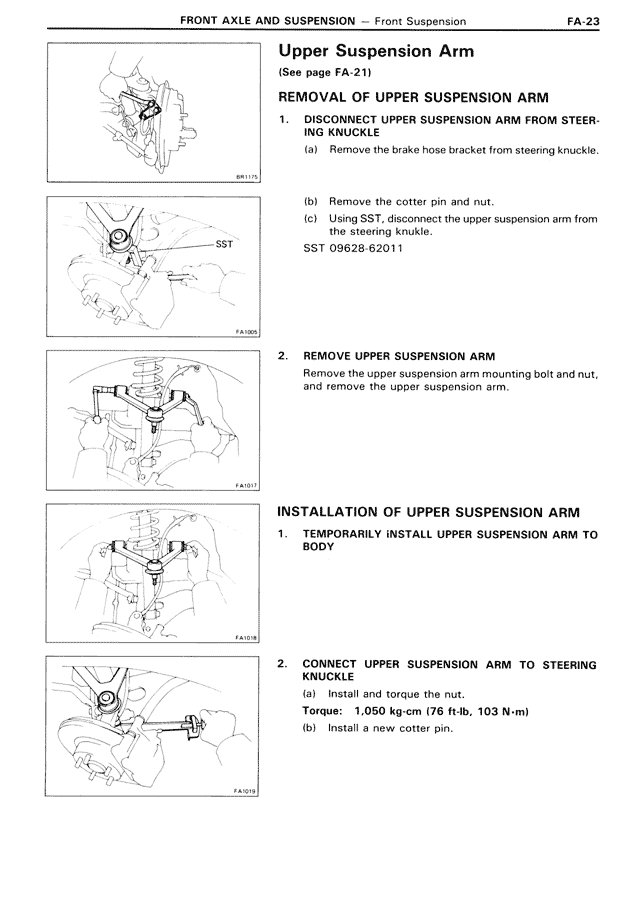

Upper Suspension Arm (See page FA-21) REMOVAL OF UPPER SUSPENSION ARM 1. DISCONNECT UPPER SUSPENSION ARM FROM STEERING KNUCKLE (a) Remove the brake hose bracket from steering knuckle. (b) Remove the cotter pin and nut. (c) Using SST, disconnect the upper suspension arm from the steering knukle. SST 09628-62011 2. REMOVE UPPER SUSPENSION ARM Remove the upper suspension arm mounting bolt and nut, and remove the upper suspension arm. INSTALLATION OF UPPER SUSPENSION ARM 1. TEMPORARILY INSTALL UPPER SUSPENSION ARM TO BODY 2. CONNECT UPPER SUSPENSION ARM TO STEERING KNUCKLE (a) Install and torque the nut. Torque: 1,050 kg·cm (76 ft·lb, 103 N·m) (b) Install a new cotter pin.
