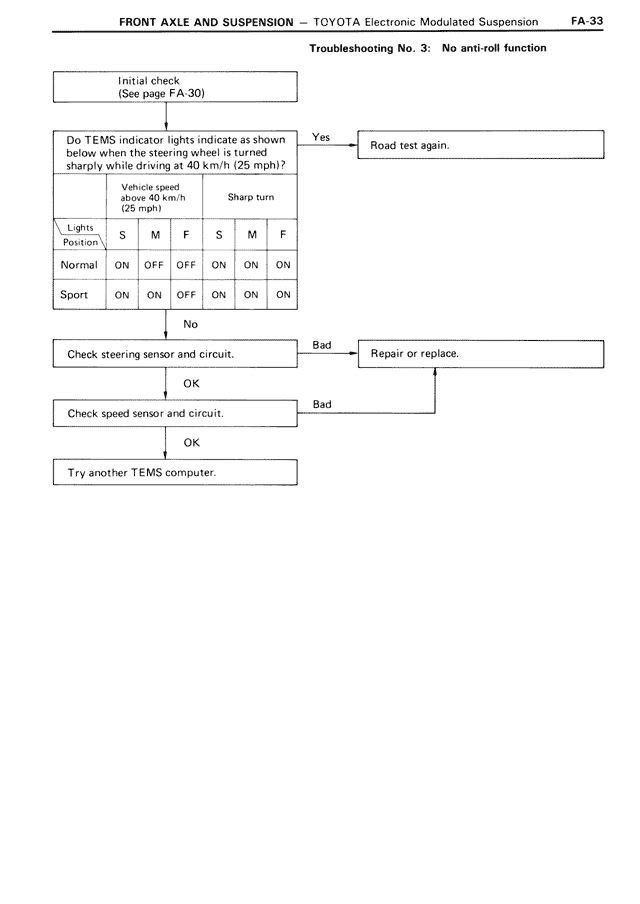

FRONT AXLE AND SUSPENSION — TOYOTA Electronic Modulated Suspension FA-33
Troubleshooting No. 3: No anti-roll function
Initial check
(See page FA-30)
Do TEMS indicator lights indicate as shown below when the steering wheel is turned sharply while driving at 40 km/h (25 mph)?
Vehicle speed above 40 km/h (25 mph) | Sharp turn
Lights Position | S M F | S M F
Normal | ON OFF OFF | ON ON ON
Sport | ON ON OFF | ON ON ON
Yes → Road test again.
No ↓
Check steering sensor and circuit.
Bad → Repair or replace.
OK ↓
Check speed sensor and circuit.
Bad → [connects to Repair or replace]
OK ↓
Try another TEMS computer.
