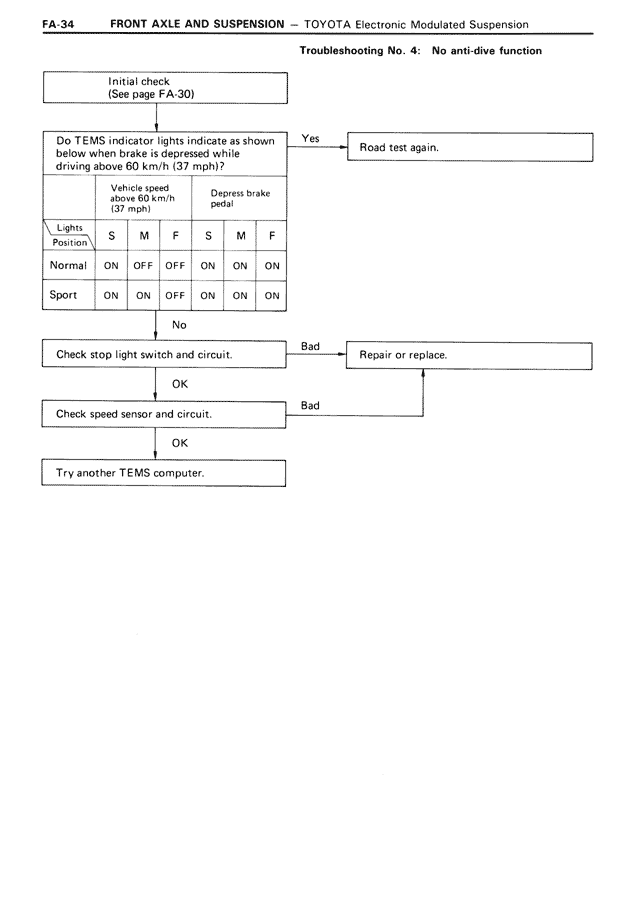

FA-34 FRONT AXLE AND SUSPENSION — TOYOTA Electronic Modulated Suspension Troubleshooting No. 4: No anti-dive function Initial check (See page FA-30) Do T·EMS indicator lights indicate as shown below when brake is depressed while driving above 60 km/h (37 mph)? Vehicle speed above 60 km/h (37 mph) Depress brake pedal Lights Position S M F S M F Normal ON OFF OFF ON ON ON Sport ON ON OFF ON ON ON Yes → Road test again. No ↓ Check stop light switch and circuit. Bad → Repair or replace. OK ↓ Check speed sensor and circuit. Bad → (returns to Repair or replace) OK ↓ Try another T·EMS computer.
