EFI SYSTEM — Electronic Control System
FI-117

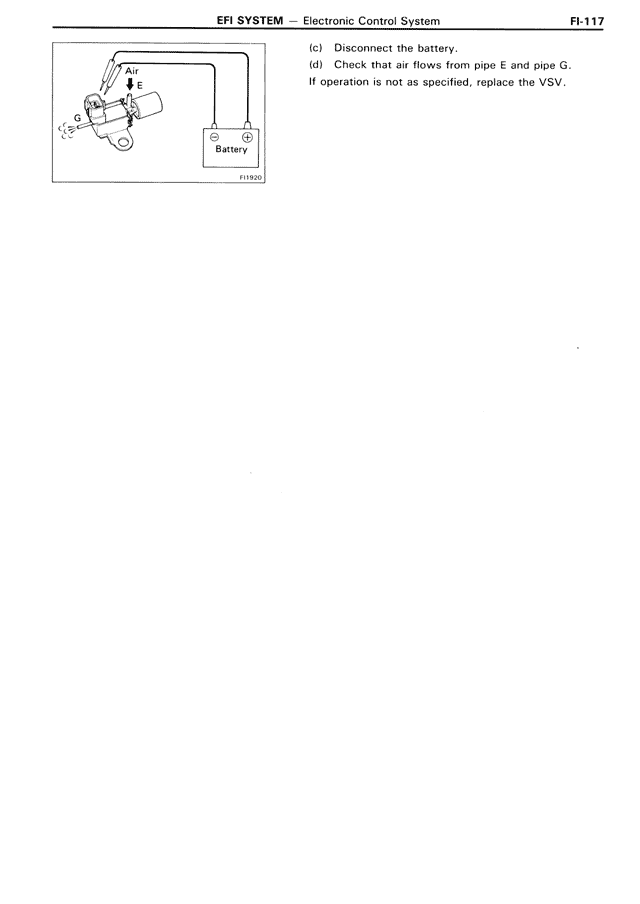

(c) Disconnect the battery.
(d) Check that air flows from pipe E and pipe G.
If operation is not as specified, replace the VSV.
[THIS IS FIGURE: Diagram showing a VSV (Vacuum Switching Valve) component with labeled pipes E and G, air flow indication, and battery connection. The diagram is labeled F11820.]
