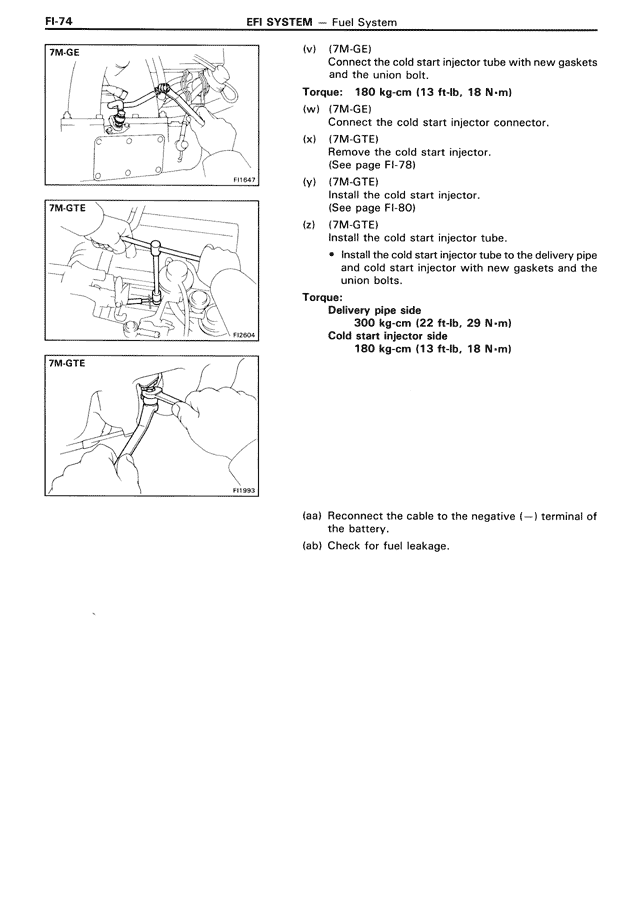

FI-74 EFI SYSTEM — Fuel System 7M-GE [Diagram showing engine compartment view] F11647 7M-GTE [Diagram showing engine compartment view] F11953 7M-GTE [Diagram showing detail view] F11953 (v) (7M-GE) Connect the cold start injector tube with new gaskets and the union bolt. Torque: 180 kg-cm (13 ft-lb, 18 N-m) (w) (7M-GE) Connect the cold start injector connector. (x) (7M-GTE) Remove the cold start injector. (See page FI-78) (y) (7M-GTE) Install the cold start injector. (See page FI-80) (z) (7M-GTE) Install the cold start injector tube. • Install the cold start injector tube to the delivery pipe and cold start injector with new gaskets and the union bolts. Torque: Delivery pipe side 300 kg-cm (22 ft-lb, 29 N-m) Cold start injector side 180 kg-cm (13 ft-lb, 18 N-m) (aa) Reconnect the cable to the negative (—) terminal of the battery. (ab) Check for fuel leakage.
