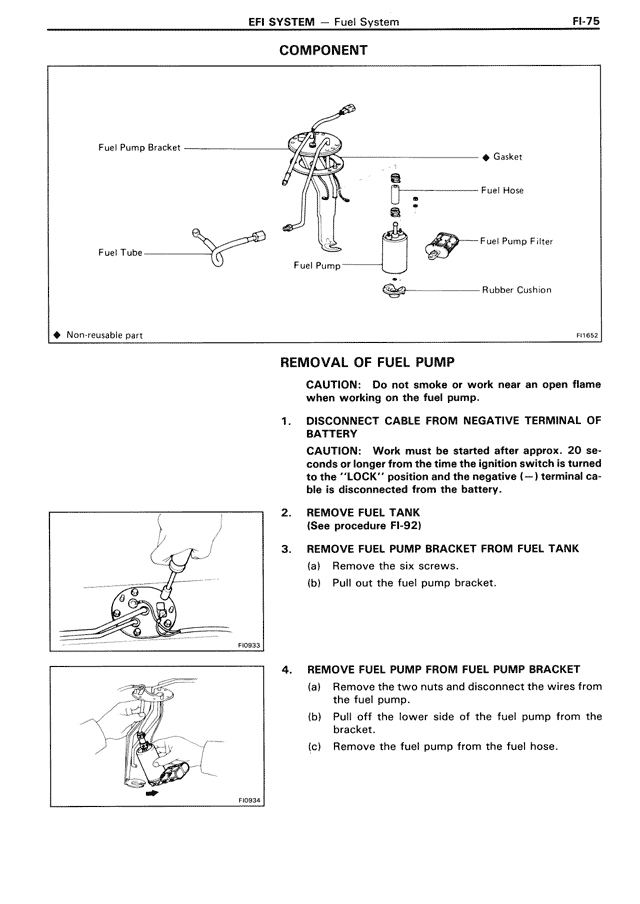

COMPONENT Fuel Pump Bracket Gasket Fuel Hose Fuel Tube Fuel Pump Filter Fuel Pump Rubber Cushion ♦ Non-reusable part FI1653 REMOVAL OF FUEL PUMP CAUTION: Do not smoke or work near an open flame when working on the fuel pump. 1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the "LOCK" position and the negative (—) terminal cable is disconnected from the battery. 2. REMOVE FUEL TANK (See procedure FI-92) 3. REMOVE FUEL PUMP BRACKET FROM FUEL TANK (a) Remove the six screws. (b) Pull out the fuel pump bracket. FI0933 4. REMOVE FUEL PUMP FROM FUEL PUMP BRACKET (a) Remove the two nuts and disconnect the wires from the fuel pump. (b) Pull off the lower side of the fuel pump from the bracket. (c) Remove the fuel pump from the fuel hose. FI0934
