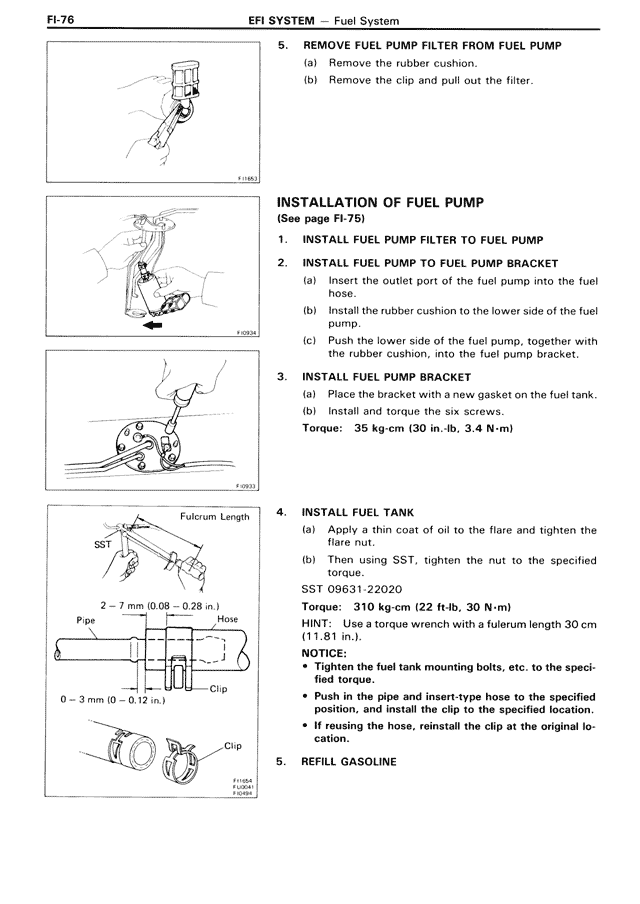

5. REMOVE FUEL PUMP FILTER FROM FUEL PUMP (a) Remove the rubber cushion. (b) Remove the clip and pull out the filter. INSTALLATION OF FUEL PUMP (See page FI-75) 1. INSTALL FUEL PUMP FILTER TO FUEL PUMP 2. INSTALL FUEL PUMP TO FUEL PUMP BRACKET (a) Insert the output port of the fuel pump into the fuel hose. (b) Install the rubber cushion to the lower side of the fuel pump. (c) Push the lower side of the fuel pump, together with the rubber cushion, into the fuel pump bracket. 3. INSTALL FUEL PUMP BRACKET (a) Place the bracket with a new gasket on the fuel tank. (b) Install and torque the six screws. Torque: 35 kg·cm (30 in.·lb, 3.4 N·m) 4. INSTALL FUEL TANK (a) Apply a thin coat of oil to the flare and tighten the flare nut. (b) Then using SST, tighten the nut to the specified torque. SST 09631-22020 Torque: 310 kg·cm (22 ft·lb, 30 N·m) HINT: Use a torque wrench with a fulcrum length 30 cm (11.81 in.). NOTICE: • Tighten the fuel tank mounting bolts, etc. to the specified torque. • Push in the pipe and insert-type hose to the specified position, and install the clip to the specified location. • If reusing the hose, reinstall the clip at the original location. 5. REFILL GASOLINE Fulcrum Length SST 2 — 7 mm (0.08 — 0.28 in.) Pipe Hose 0 — 3 mm (0 — 0.12 in.) Clip Clip F10483 F04234 F09281 F10654 F04254 F04255
