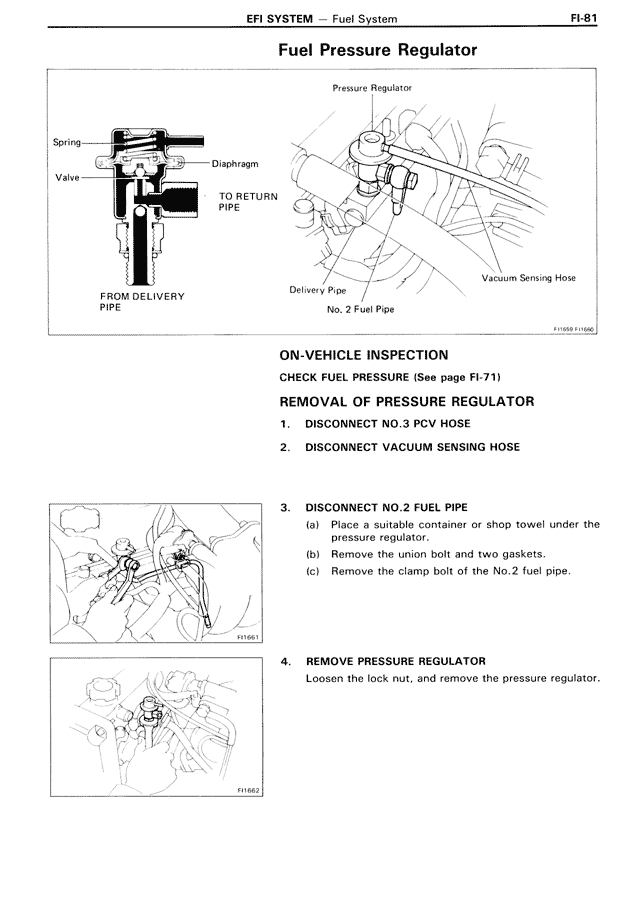

Fuel Pressure Regulator
Pressure Regulator
Spring
Valve
Diaphragm
TO RETURN
PIPE
FROM DELIVERY
PIPE
Delivery Pipe
Vacuum Sensing Hose
No. 2 Fuel Pipe
F11683 F11680
ON-VEHICLE INSPECTION
CHECK FUEL PRESSURE (See page FI-71)
REMOVAL OF PRESSURE REGULATOR
1. DISCONNECT NO.3 PCV HOSE
2. DISCONNECT VACUUM SENSING HOSE
3. DISCONNECT NO.2 FUEL PIPE
(a) Place a suitable container or shop towel under the pressure regulator.
(b) Remove the union bolt and two gaskets.
(c) Remove the clamp bolt of the No.2 fuel pipe.
F11661
4. REMOVE PRESSURE REGULATOR
Loosen the lock nut, and remove the pressure regulator.
F11662
