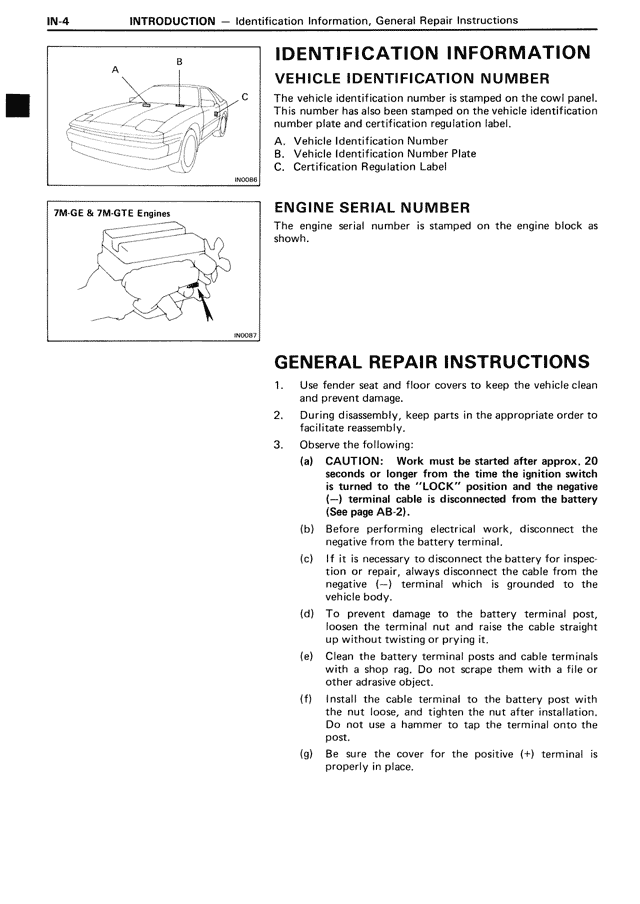

IN-4 INTRODUCTION — Identification Information, General Repair Instructions [DIAGRAM: Vehicle with labels A, B, C] IN00083 7M-GE & 7M-GTE Engines [DIAGRAM: Engine block with arrow pointing to serial number location] IN00087 IDENTIFICATION INFORMATION VEHICLE IDENTIFICATION NUMBER The vehicle identification number is stamped on the cowl panel. This number has also been stamped on the vehicle identification number plate and certification regulation label. A. Vehicle Identification Number B. Vehicle Identification Number Plate C. Certification Regulation Label ENGINE SERIAL NUMBER The engine serial number is stamped on the engine block as shown. GENERAL REPAIR INSTRUCTIONS 1. Use fender seat and floor covers to keep the vehicle clean and prevent damage. 2. During disassembly, keep parts in the appropriate order to facilitate reassembly. 3. Observe the following: (a) CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the "LOCK" position and the negative (—) terminal cable is disconnected from the battery (See page AB-2). (b) Before performing electrical work, first disconnect the negative from the battery terminal. (c) If it is necessary to disconnect the battery for inspection or repair, always disconnect the cable from the negative (—) terminal which is grounded to the vehicle body. (d) To remove the cable from the battery terminal post, loosen the terminal nut and raise the cable straight up without twisting or prying it. (e) Clean the battery terminal posts and cable terminals with a shop rag. Do not scrape them with a file or other abrasive object. (f) Install the cable terminal to the battery post with the nut loose, and tighten the nut after installation. Do not use a hammer to tap the terminal onto the post. (g) Be sure the cover for the positive (+) terminal is properly in place.
