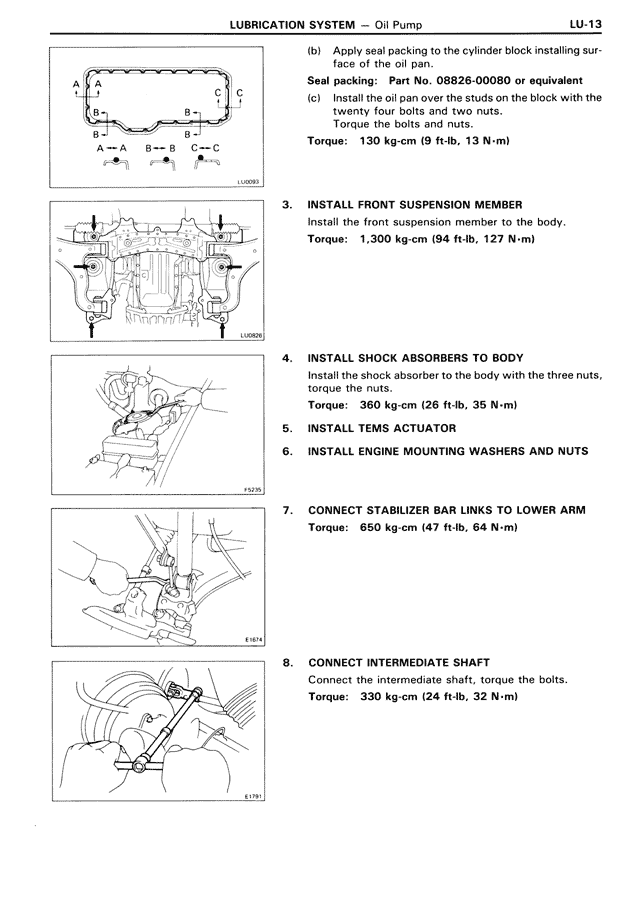

LUBRICATION SYSTEM — Oil Pump
LU-13
(b) Apply seal packing to the cylinder block installing surface of the oil pan.
Seal packing: Part No. 08826-00080 or equivalent
(c) Install the oil pan over the studs on the block with the twenty four bolts and two nuts.
Torque the bolts and nuts.
Torque: 130 kg-cm (9 ft-lb, 13 N·m)
3. INSTALL FRONT SUSPENSION MEMBER
Install the front suspension member to the body.
Torque: 1,300 kg-cm (94 ft-lb, 127 N·m)
4. INSTALL SHOCK ABSORBERS TO BODY
Install the shock absorber to the body with the three nuts, torque the nuts.
Torque: 360 kg-cm (26 ft-lb, 35 N·m)
5. INSTALL TEMS ACTUATOR
6. INSTALL ENGINE MOUNTING WASHERS AND NUTS
7. CONNECT STABILIZER BAR LINKS TO LOWER ARM
Torque: 650 kg-cm (47 ft-lb, 64 N·m)
8. CONNECT INTERMEDIATE SHAFT
Connect the intermediate shaft, torque the bolts.
Torque: 330 kg-cm (24 ft-lb, 32 N·m)
