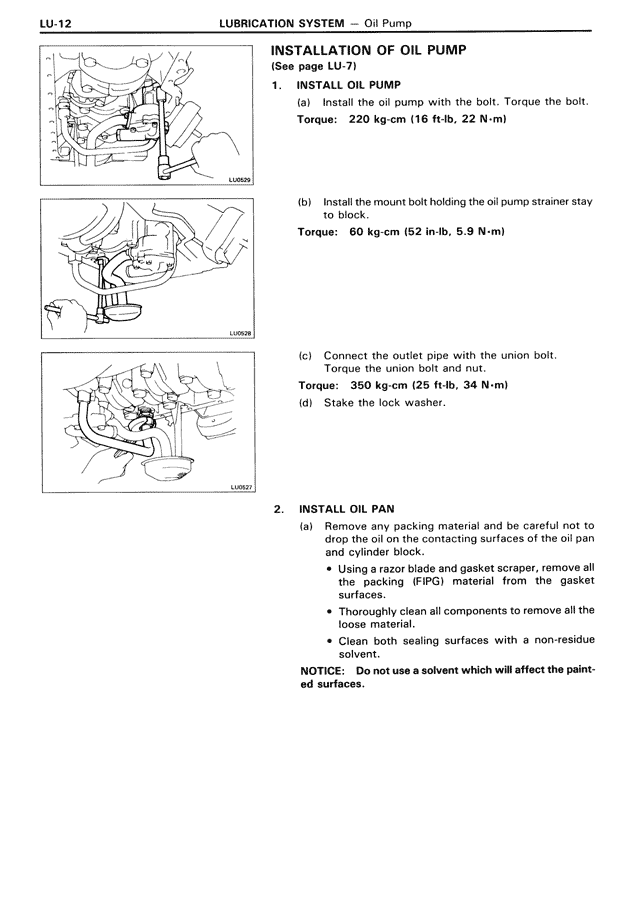

LU-12 LUBRICATION SYSTEM — Oil Pump INSTALLATION OF OIL PUMP (See page LU-7) 1. INSTALL OIL PUMP (a) Install the oil pump with the bolt. Torque the bolt. Torque: 220 kg-cm (16 ft-lb, 22 N-m) (b) Install the mount bolt holding the oil pump strainer stay to block. Torque: 60 kg-cm (52 in-lb, 5.9 N-m) (c) Connect the outlet pipe with the union bolt. Torque the union bolt and nut. Torque: 350 kg-cm (25 ft-lb, 34 N-m) (d) Stake the lock washer. 2. INSTALL OIL PAN (a) Remove any packing material and be careful not to drop the oil on the contacting surfaces of the oil pan and cylinder block. • Using a razor blade and gasket scraper, remove all the packing (FIPG) material from the gasket surfaces. • Thoroughly clean all components to remove all the loose material. • Clean both sealing surfaces with a non-residue solvent. NOTICE: Do not use a solvent which will affect the painted surfaces.
