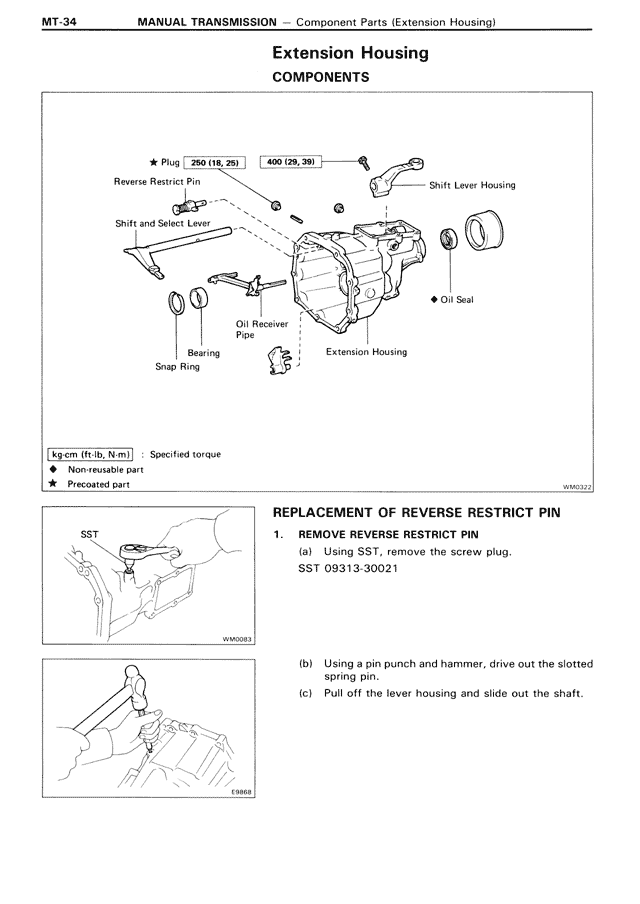

MT-34 MANUAL TRANSMISSION — Component Parts (Extension Housing) Extension Housing COMPONENTS ★ Plug 250 (18, 25) 400 (29, 30) Reverse Restrict Pin Shift and Select Lever Shift Lever Housing ◆ Oil Seal Oil Receiver Pipe Extension Housing Bearing Snap Ring kg·cm (ft·lb, N·m) : Specified torque ◆ Non-reusable part ★ Precoated part WM0327 REPLACEMENT OF REVERSE RESTRICT PIN 1. REMOVE REVERSE RESTRICT PIN (a) Using SST, remove the screw plug. SST 09313-30021 SST WM0083 (b) Using a pin punch and hammer, drive out the slotted spring pin. (c) Pull off the lever housing and slide out the shaft. E0868
