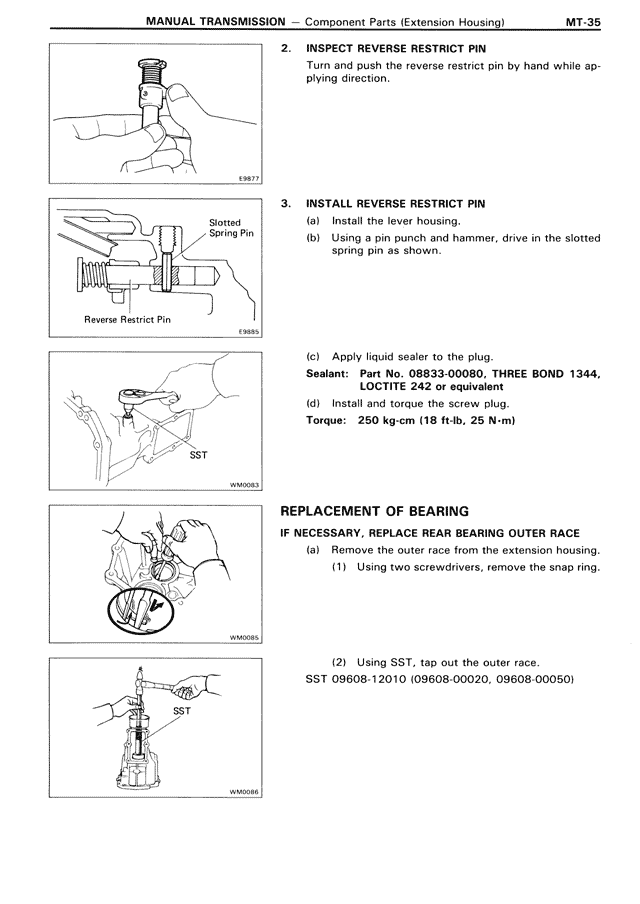

2. INSPECT REVERSE RESTRICT PIN
Turn and push the reverse restrict pin by hand while applying direction.
3. INSTALL REVERSE RESTRICT PIN
(a) Install the lever pin.
(b) Using a pin punch and hammer, drive in the slotted spring pin as shown.
(c) Apply liquid sealer to the plug.
Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
(d) Install and torque the screw plug.
Torque: 250 kg·cm (18 ft·lb, 25 N·m)
REPLACEMENT OF BEARING
IF NECESSARY, REPLACE REAR BEARING OUTER RACE
(a) Remove the outer race from the extension housing.
(1) Using two screwdrivers, remove the snap ring.
(2) Using SST, tap out the outer race.
SST 09608-12010 (09608-00020, 09608-00050)
