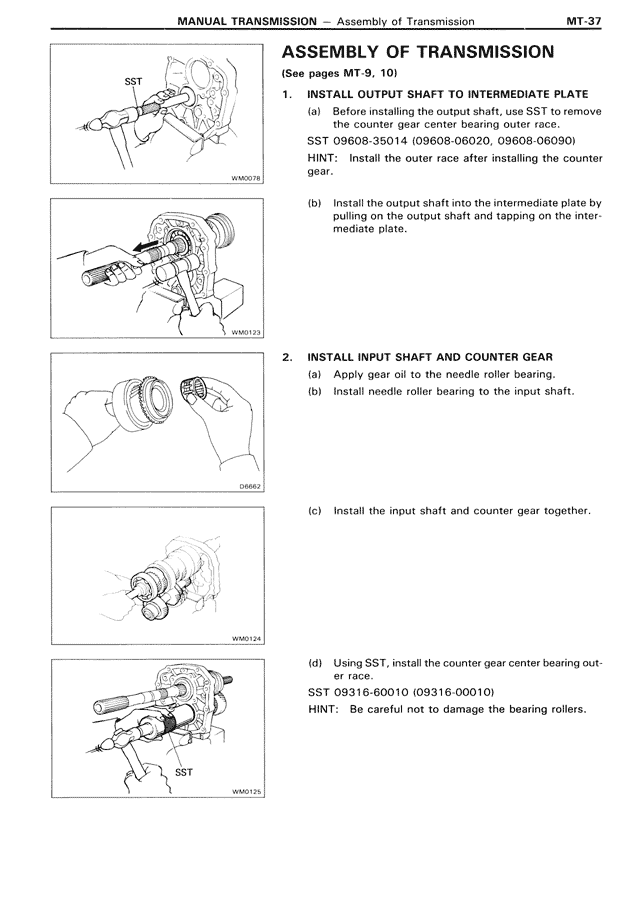

ASSEMBLY OF TRANSMISSION (See pages MT-9, 10) 1. INSTALL OUTPUT SHAFT TO INTERMEDIATE PLATE (a) Before installing the output shaft, use SST to remove the counter gear center bearing outer race. SST 09608-35014 (09608-06020, 09608-06090) HINT: Install the outer race after installing the counter gear. (b) Install the output shaft into the intermediate plate by pulling on the output shaft and tapping on the intermediate plate. 2. INSTALL INPUT SHAFT AND COUNTER GEAR (a) Apply gear oil to the needle roller bearing. (b) Install needle roller bearing to the input shaft. (c) Install the input shaft and counter gear together. (d) Using SST, install the counter gear center bearing outer race. SST 09316-60010 (09316-00010) HINT: Be careful not to damage the bearing rollers.
