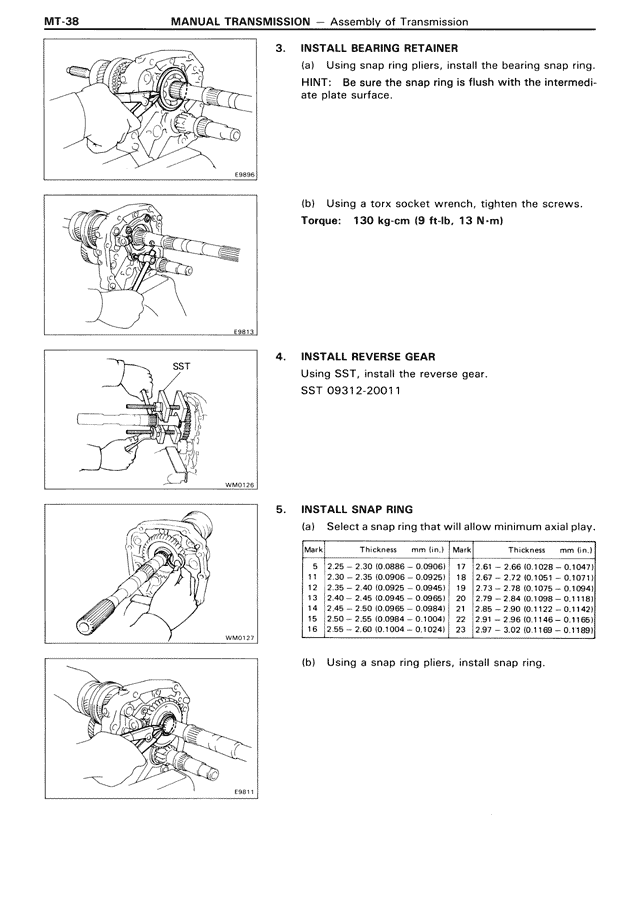

MT-38 MANUAL TRANSMISSION — Assembly of Transmission 3. INSTALL BEARING RETAINER (a) Using snap ring pliers, install the bearing snap ring. HINT: Be sure the snap ring is flush with the intermediate plate surface. (b) Using a torx socket wrench, tighten the screws. Torque: 130 kg-cm (9 ft-lb, 13 N-m) 4. INSTALL REVERSE GEAR Using SST, install the reverse gear. SST 09312-20011 5. INSTALL SNAP RING (a) Select a snap ring that will allow minimum axial play. Mark Thickness mm (in.) Mark Thickness mm (in.) 5 2.25 - 2.30 (0.0886 - 0.0906) 17 2.61 - 2.66 (0.1028 - 0.1047) 11 2.30 - 2.35 (0.0906 - 0.0925) 18 2.67 - 2.72 (0.1051 - 0.1071) 12 2.35 - 2.40 (0.0925 - 0.0945) 19 2.73 - 2.78 (0.1075 - 0.1094) 13 2.40 - 2.45 (0.0945 - 0.0965) 20 2.79 - 2.84 (0.1098 - 0.1118) 14 2.45 - 2.50 (0.0965 - 0.0984) 21 2.85 - 2.90 (0.1122 - 0.1142) 15 2.50 - 2.55 (0.0984 - 0.1004) 22 2.91 - 2.96 (0.1146 - 0.1165) 16 2.55 - 2.60 (0.1004 - 0.1024) 23 2.97 - 3.02 (0.1169 - 0.1189) (b) Using a snap ring pliers, install snap ring.
