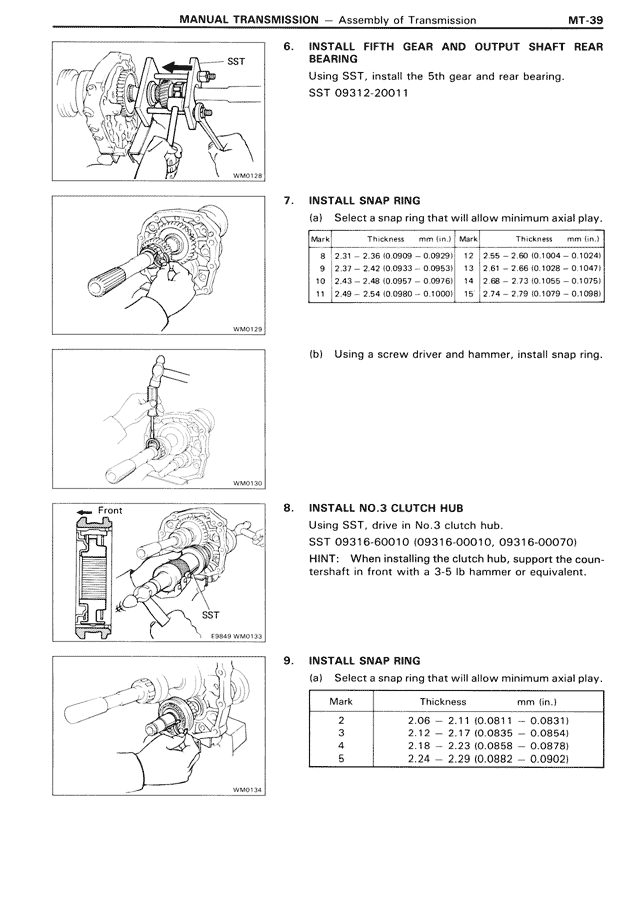

6. INSTALL FIFTH GEAR AND OUTPUT SHAFT REAR BEARING Using SST, install the 5th gear and rear bearing. SST 09312-20011 7. INSTALL SNAP RING (a) Select a snap ring that will allow minimum axial play. Mark | Thickness mm (in.) | Mark | Thickness mm (in.) 8 | 2.31 - 2.36 (0.0909 - 0.0929) | 12 | 2.55 - 2.60 (0.1004 - 0.1024) 9 | 2.37 - 2.42 (0.0933 - 0.0953) | 13 | 2.61 - 2.66 (0.1028 - 0.1047) 10 | 2.43 - 2.48 (0.0957 - 0.0976) | 14 | 2.68 - 2.73 (0.1055 - 0.1075) 11 | 2.49 - 2.54 (0.0980 - 0.1000) | 15 | 2.74 - 2.79 (0.1079 - 0.1098) (b) Using a screw driver and hammer, install snap ring. 8. INSTALL NO.3 CLUTCH HUB Using SST, drive in No.3 clutch hub. SST 09316-60010 (09316-00010, 09316-00070) HINT: When installing the clutch hub, support the countershaft in front with a 3-5 lb hammer or equivalent. 9. INSTALL SNAP RING (a) Select a snap ring that will allow minimum axial play. Mark | Thickness mm (in.) 2 | 2.06 - 2.11 (0.0811 - 0.0831) 3 | 2.12 - 2.17 (0.0835 - 0.0854) 4 | 2.18 - 2.23 (0.0858 - 0.0878) 5 | 2.24 - 2.29 (0.0882 - 0.0902)
