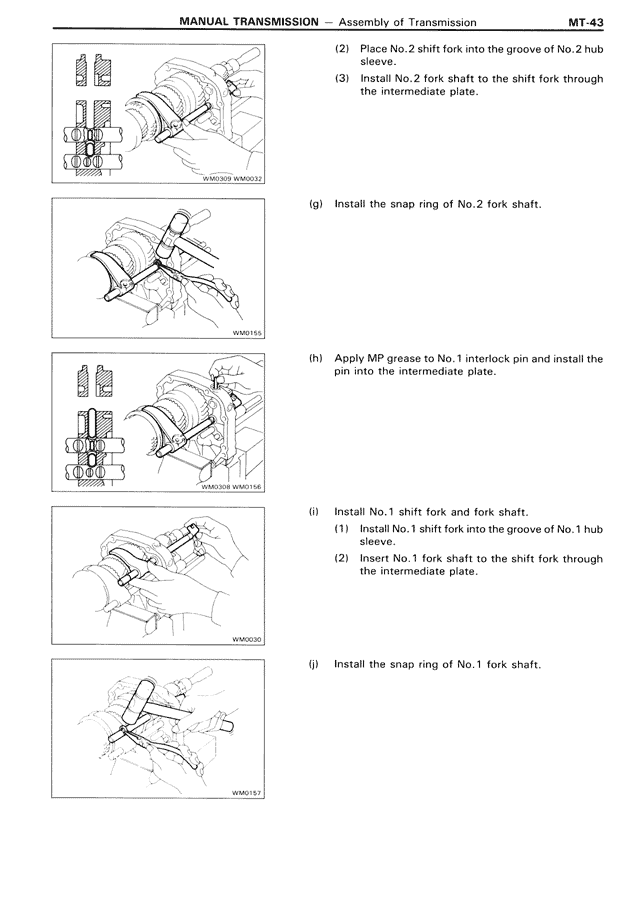

MANUAL TRANSMISSION — Assembly of Transmission
MT-43
(2) Place No. 2 shift fork into the groove of No. 2 hub sleeve.
(3) Install No. 2 fork shaft to the shift fork through the intermediate plate.
(g) Install the snap ring of No. 2 fork shaft.
(h) Apply MP grease to No. 1 interlock pin and install the pin into the intermediate plate.
(i) Install No. 1 shift fork and fork shaft.
(1) Install No. 1 shift fork into the groove of No. 1 hub sleeve.
(2) Insert No. 1 fork shaft to the shift fork through the intermediate plate.
(j) Install the snap ring of No. 1 fork shaft.
