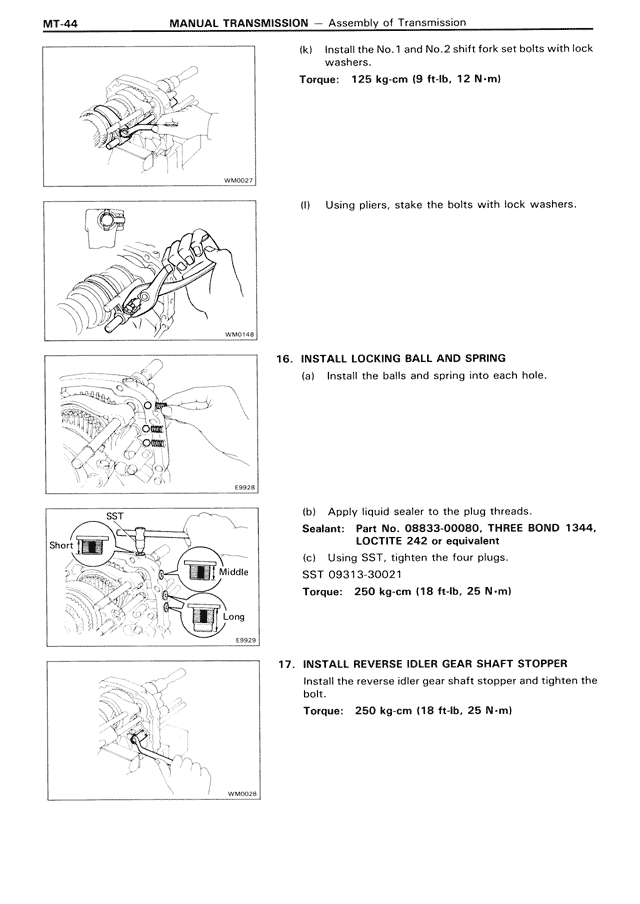

MT-44
MANUAL TRANSMISSION — Assembly of Transmission
(k) Install the No.1 and No.2 shift fork set bolts with lock washers.
Torque: 125 kg-cm (9 ft-lb, 12 N-m)
(l) Using pliers, stake the bolts with lock washers.
16. INSTALL LOCKING BALL AND SPRING
(a) Install the balls and spring into each hole.
(b) Apply liquid sealer to the plug threads.
Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
(c) Using SST, tighten the four plugs.
SST 09313-30021
Torque: 250 kg-cm (18 ft-lb, 25 N-m)
17. INSTALL REVERSE IDLER GEAR SHAFT STOPPER
Install the reverse idler gear shaft stopper and tighten the bolt.
Torque: 250 kg-cm (18 ft-lb, 25 N-m)
