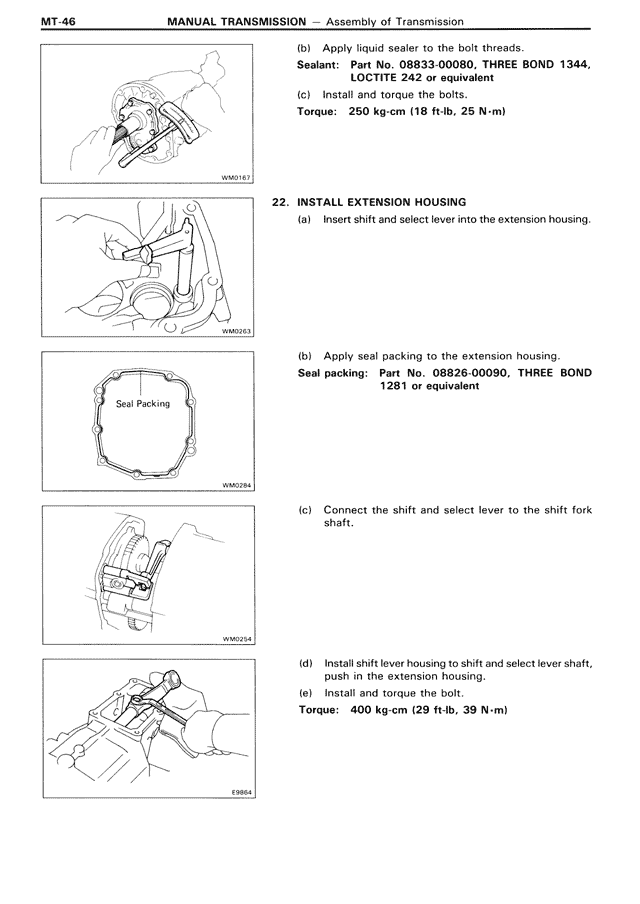

MT-46
MANUAL TRANSMISSION — Assembly of Transmission
(b) Apply liquid sealer to the bolt threads.
Sealant: Part No. 08833-00080, THREE BOND 1344, LOCTITE 242 or equivalent
(c) Install and torque the bolts.
Torque: 250 kg-cm (18 ft-lb, 25 N·m)
22. INSTALL EXTENSION HOUSING
(a) Insert shift and select lever into the extension housing.
(b) Apply seal packing to the extension housing.
Seal packing: Part No. 08826-00090, THREE BOND 1281 or equivalent
(c) Connect the shift and select lever to the shift fork shaft.
(d) Install shift lever housing to shift and select lever shaft, push in the extension housing.
(e) Install and torque the bolt.
Torque: 400 kg-cm (29 ft-lb, 39 N·m)
