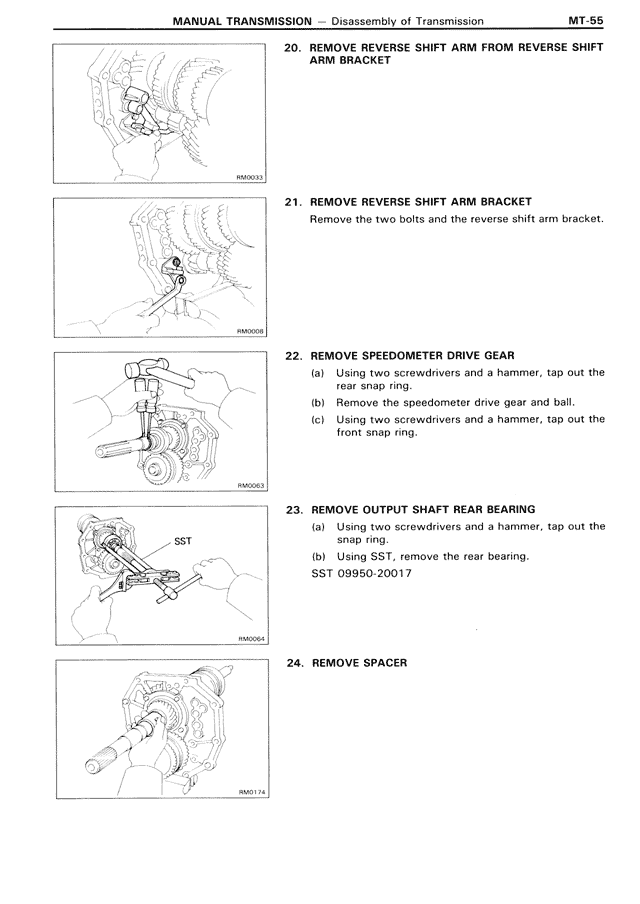

20. REMOVE REVERSE SHIFT ARM FROM REVERSE SHIFT ARM BRACKET
21. REMOVE REVERSE SHIFT ARM BRACKET
Remove the two bolts and the reverse shift arm bracket.
22. REMOVE SPEEDOMETER DRIVE GEAR
(a) Using two screwdrivers and a hammer, tap out the rear snap ring.
(b) Remove the speedometer drive gear and ball.
(c) Using two screwdrivers and a hammer, tap out the front snap ring.
23. REMOVE OUTPUT SHAFT REAR BEARING
(a) Using two screwdrivers and a hammer, tap out the snap ring.
(b) Using SST, remove the rear bearing.
SST 09950-20017
24. REMOVE SPACER
