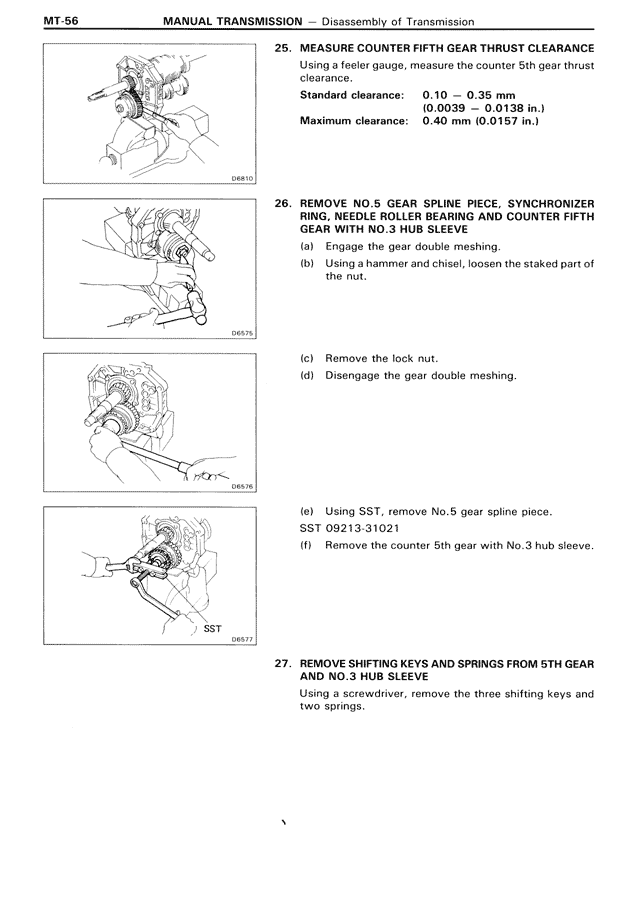

25. MEASURE COUNTER FIFTH GEAR THRUST CLEARANCE
Using a feeler gauge, measure the counter 5th gear thrust clearance.
Standard clearance: 0.10 — 0.35 mm
(0.0039 — 0.0138 in.)
Maximum clearance: 0.40 mm (0.0157 in.)
26. REMOVE NO.5 GEAR SPLINE PIECE, SYNCHRONIZER RING, NEEDLE ROLLER BEARING AND COUNTER FIFTH GEAR WITH NO.3 HUB SLEEVE
(a) Engage the gear double meshing.
(b) Using a hammer and chisel, loosen the staked part of the nut.
(c) Remove the lock nut.
(d) Disengage the gear double meshing.
(e) Using SST, remove No.5 gear spline piece.
SST 09213-31021
(f) Remove the counter 5th gear with No.3 hub sleeve.
27. REMOVE SHIFTING KEYS AND SPRINGS FROM 5TH GEAR AND NO.3 HUB SLEEVE
Using a screwdriver, remove the three shifting keys and two springs.
