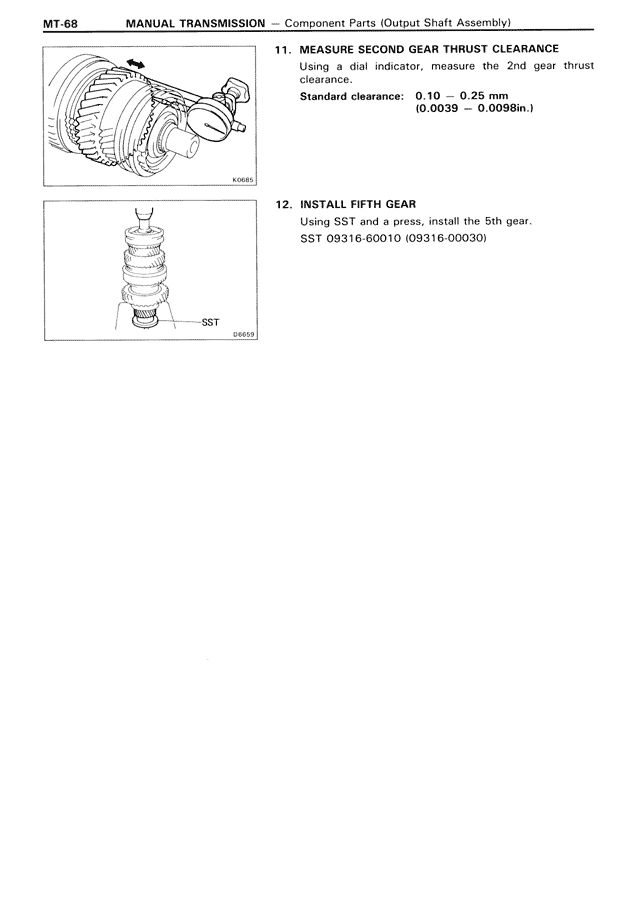

MT-68 MANUAL TRANSMISSION — Component Parts (Output Shaft Assembly)
11. MEASURE SECOND GEAR THRUST CLEARANCE
Using a dial indicator, measure the 2nd gear thrust clearance.
Standard clearance: 0.10 — 0.25 mm
(0.0039 — 0.0098in.)
12. INSTALL FIFTH GEAR
Using SST and a press, install the 5th gear.
SST 09316-60010 (09316-00030)
SST
