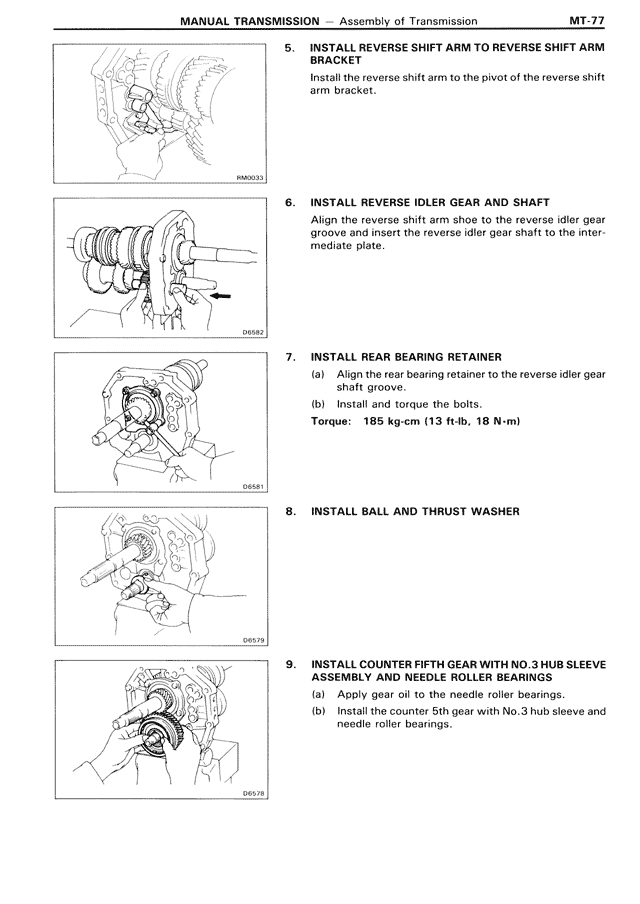

MANUAL TRANSMISSION — Assembly of Transmission MT-77 5. INSTALL REVERSE SHIFT ARM TO REVERSE SHIFT ARM BRACKET Install the reverse shift arm to the pivot of the reverse shift arm bracket. 6. INSTALL REVERSE IDLER GEAR AND SHAFT Align the reverse shift arm shoe to the reverse idler gear groove and insert the reverse idler gear shaft to the intermediate plate. 7. INSTALL REAR BEARING RETAINER (a) Align the rear bearing retainer to the reverse idler gear shaft groove. (b) Install and torque the bolts. Torque: 185 kg-cm (13 ft-lb, 18 N-m) 8. INSTALL BALL AND THRUST WASHER 9. INSTALL COUNTER FIFTH GEAR WITH NO.3 HUB SLEEVE ASSEMBLY AND NEEDLE ROLLER BEARINGS (a) Apply gear oil to the needle roller bearings. (b) Install the counter 5th gear with No.3 hub sleeve and needle roller bearings.
