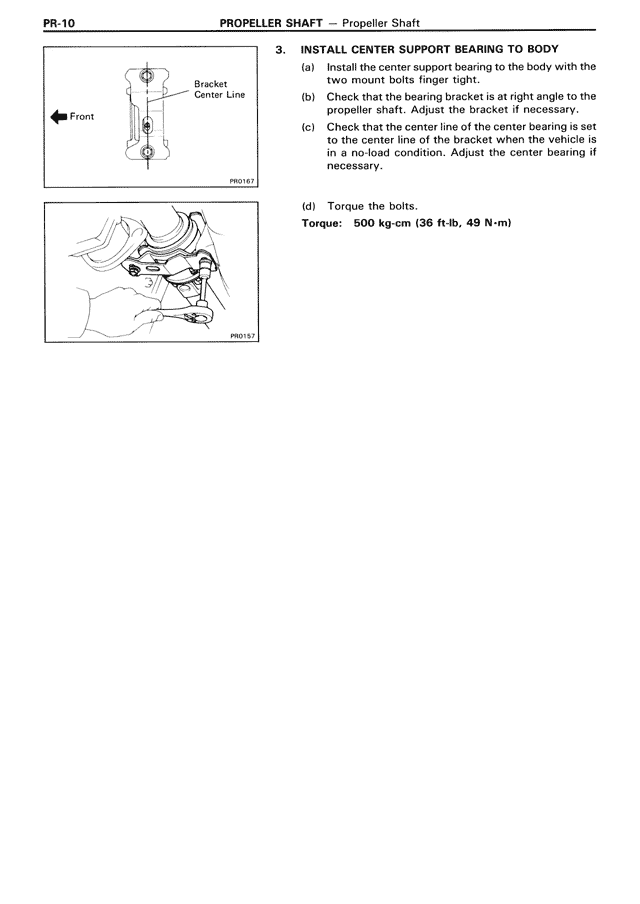

PR-10 PROPELLER SHAFT — Propeller Shaft
3. INSTALL CENTER SUPPORT BEARING TO BODY
(a) Install the center support bearing to the body with the
two mount bolts finger tight.
(b) Check that the bearing bracket is at right angle to the
propeller shaft. Adjust the bracket if necessary.
(c) Check that the center line of the center bearing is set
to the center line of the bracket when the vehicle is
in a no-load condition. Adjust the center bearing if
necessary.
(d) Torque the bolts.
Torque: 500 kg-cm (36 ft-lb, 49 N·m)
