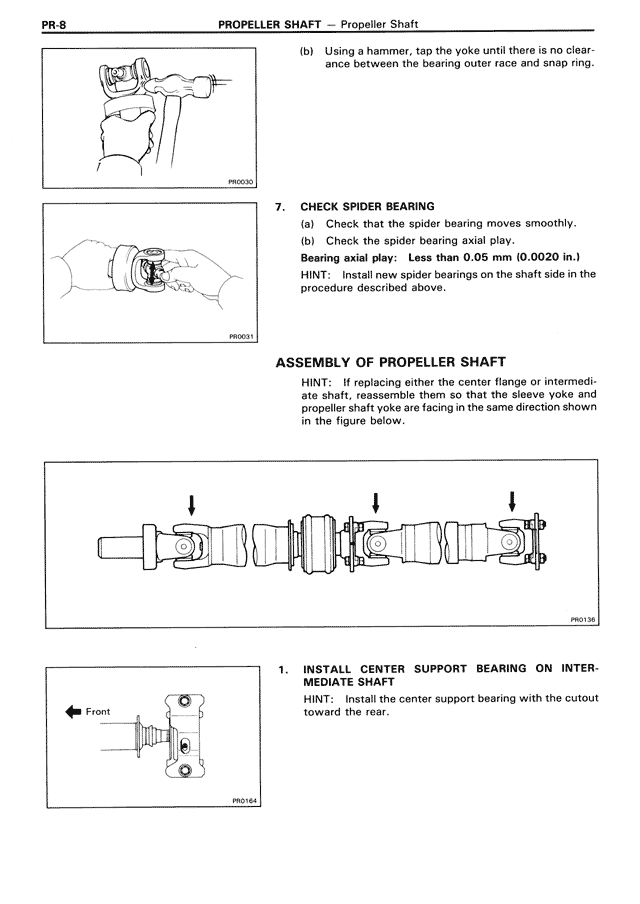

PR-8 PROPELLER SHAFT — Propeller Shaft (b) Using a hammer, tap the yoke until there is no clearance between the bearing outer race and snap ring. PN0030 PN0031 7. CHECK SPIDER BEARING (a) Check that the spider bearing moves smoothly. (b) Check the spider bearing axial play. Bearing axial play: Less than 0.05 mm (0.0020 in.) HINT: Install new spider bearings on the shaft side in the procedure described above. ASSEMBLY OF PROPELLER SHAFT HINT: If replacing either the center flange or intermediate shaft, reassemble them so that the sleeve yoke and propeller shaft yoke are facing in the same direction shown in the figure below. PN0136 1. INSTALL CENTER SUPPORT BEARING ON INTERMEDIATE SHAFT HINT: Install the center support bearing with the cutout toward the rear. Front PN0161
