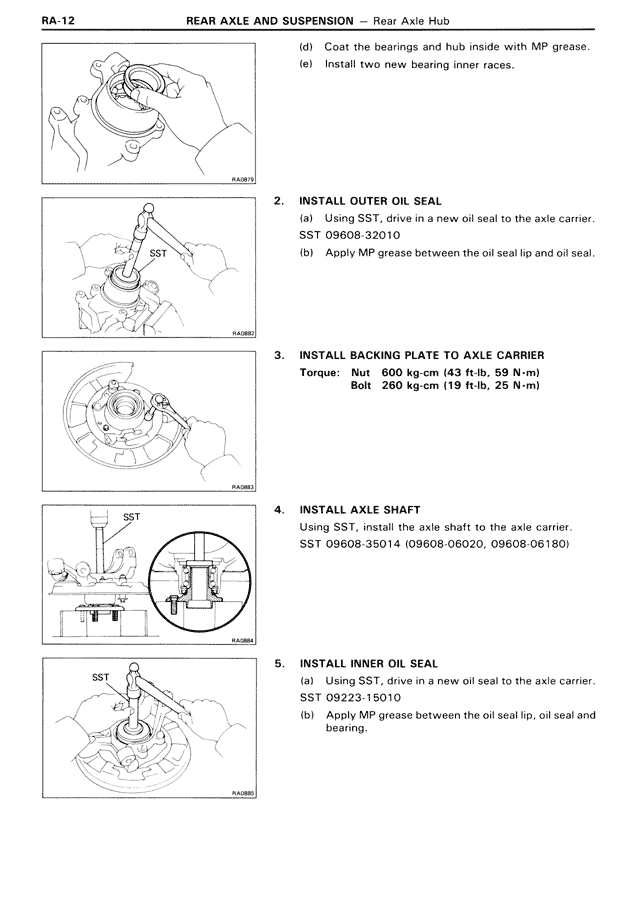

RA-12 REAR AXLE AND SUSPENSION — Rear Axle Hub (d) Coat the bearings and hub inside with MP grease. (e) Install two new bearing inner races. 2. INSTALL OUTER OIL SEAL (a) Using SST, drive in a new oil seal to the axle carrier. SST 09608-32010 (b) Apply MP grease between the oil seal lip and oil seal. 3. INSTALL BACKING PLATE TO AXLE CARRIER Torque: Nut 600 kg-cm (43 ft-lb, 59 N-m) Bolt 260 kg-cm (19 ft-lb, 25 N-m) 4. INSTALL AXLE SHAFT Using SST, install the axle shaft to the axle carrier. SST 09608-35014 (09608-06020, 09608-06180) 5. INSTALL INNER OIL SEAL (a) Using SST, drive in a new oil seal to the axle carrier. SST 09223-15010 (b) Apply MP grease between the oil seal lip, oil seal and bearing.
