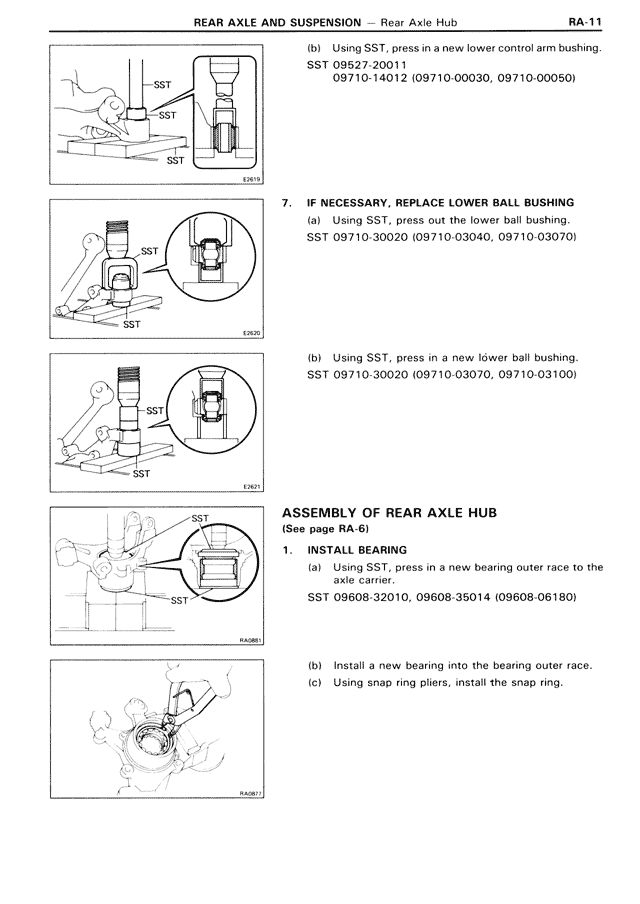

REAR AXLE AND SUSPENSION — Rear Axle Hub
RA-11
(b) Using SST, press in a new lower control arm bushing.
SST 09527-20011
09710-14012 (09710-00030, 09710-00050)
7. IF NECESSARY, REPLACE LOWER BALL BUSHING
(a) Using SST, press out the lower ball bushing.
SST 09710-30020 (09710-03040, 09710-03070)
(b) Using SST, press in a new lower ball bushing.
SST 09710-30020 (09710-03070, 09710-03100)
ASSEMBLY OF REAR AXLE HUB
(See page RA-6)
1. INSTALL BEARING
(a) Using SST, press in a new bearing outer race to the
axle carrier.
SST 09608-32010, 09608-35014 (09608-06180)
(b) Install a new bearing into the bearing outer race.
(c) Using snap ring pliers, install the snap ring.
