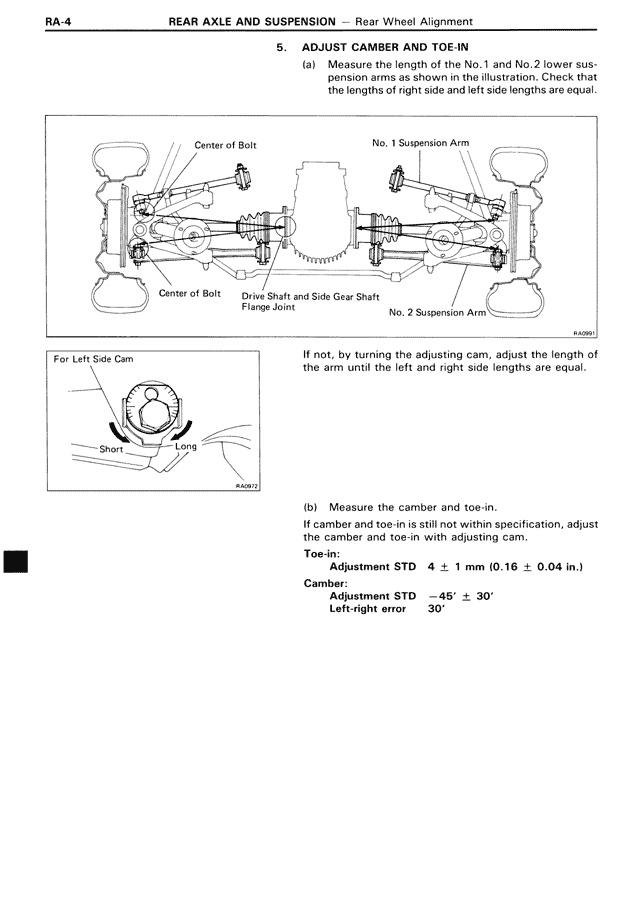

5. ADJUST CAMBER AND TOE-IN
(a) Measure the length of the No.1 and No.2 lower suspension arms as shown in the illustration. Check that the lengths of right side and left side lengths are equal.
Center of Bolt
No. 1 Suspension Arm
Center of Bolt
Drive Shaft and Side Gear Shaft Flange Joint
No. 2 Suspension Arm
For Left Side Cam
Short
Long
If not, by turning the adjusting cam, adjust the length of the arm until the left and right side lengths are equal.
(b) Measure the camber and toe-in.
If camber and toe-in is still not within specification, adjust the camber and toe-in with adjusting cam.
Toe-in:
Adjustment STD 4 ± 1 mm (0.16 ± 0.04 in.)
Camber:
Adjustment STD -45' ± 30'
Left-right error 30'
