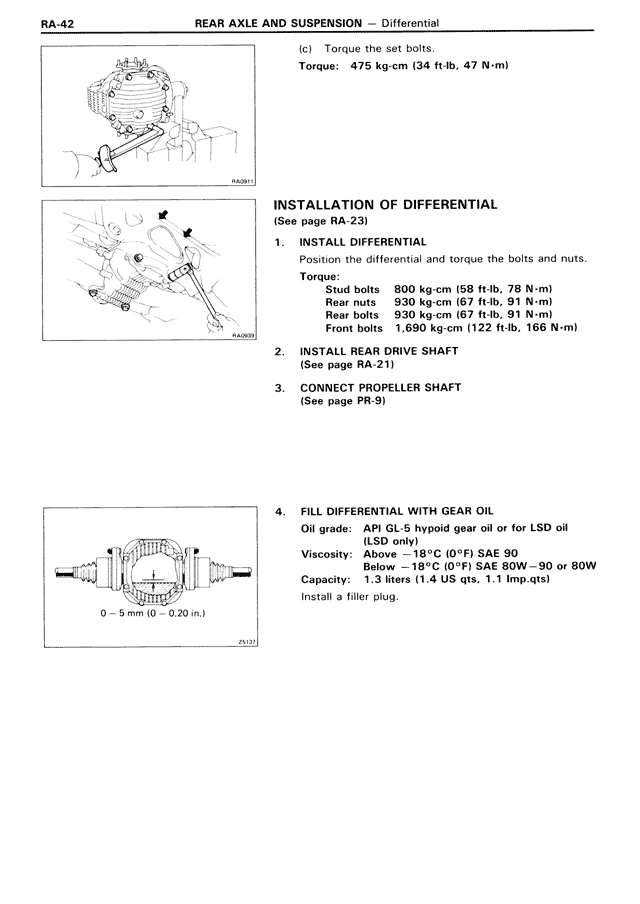

RA-42 REAR AXLE AND SUSPENSION — Differential (c) Torque the set bolts. Torque: 475 kg-cm (34 ft-lb, 47 N·m) INSTALLATION OF DIFFERENTIAL (See page RA-23) 1. INSTALL DIFFERENTIAL Position the differential and torque the bolts and nuts. Torque: Stud bolts 800 kg-cm (58 ft-lb, 78 N·m) Rear nuts 930 kg-cm (67 ft-lb, 91 N·m) Rear bolts 930 kg-cm (67 ft-lb, 91 N·m) Front bolts 1,690 kg-cm (122 ft-lb, 166 N·m) 2. INSTALL REAR DRIVE SHAFT (See page RA-21) 3. CONNECT PROPELLER SHAFT (See page PR-9) 4. FILL DIFFERENTIAL WITH GEAR OIL Oil grade: API GL-5 hypoid gear oil or for LSD oil (LSD only) Viscosity: Above −18°C (0°F) SAE 90 Below −18°C (0°F) SAE 80W−90 or 80W Capacity: 1.3 liters (1.4 US qts, 1.1 lmp·qts) Install a filler plug. 0 − 5 mm (0 − 0.20 in.)
