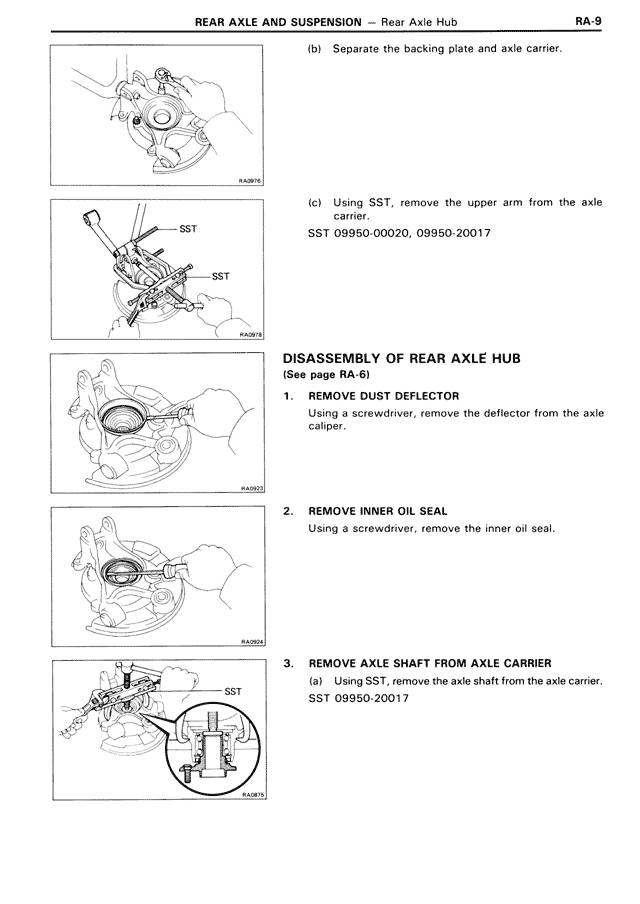

REAR AXLE AND SUSPENSION — Rear Axle Hub RA-9 (b) Separate the backing plate and axle carrier. (c) Using SST, remove the upper arm from the axle carrier. SST 09950-00020, 09950-20017 DISASSEMBLY OF REAR AXLE HUB (See page RA-6) 1. REMOVE DUST DEFLECTOR Using a screwdriver, remove the deflector from the axle caliper. 2. REMOVE INNER OIL SEAL Using a screwdriver, remove the inner oil seal. 3. REMOVE AXLE SHAFT FROM AXLE CARRIER (a) Using SST, remove the axle shaft from the axle carrier. SST 09950-20017
