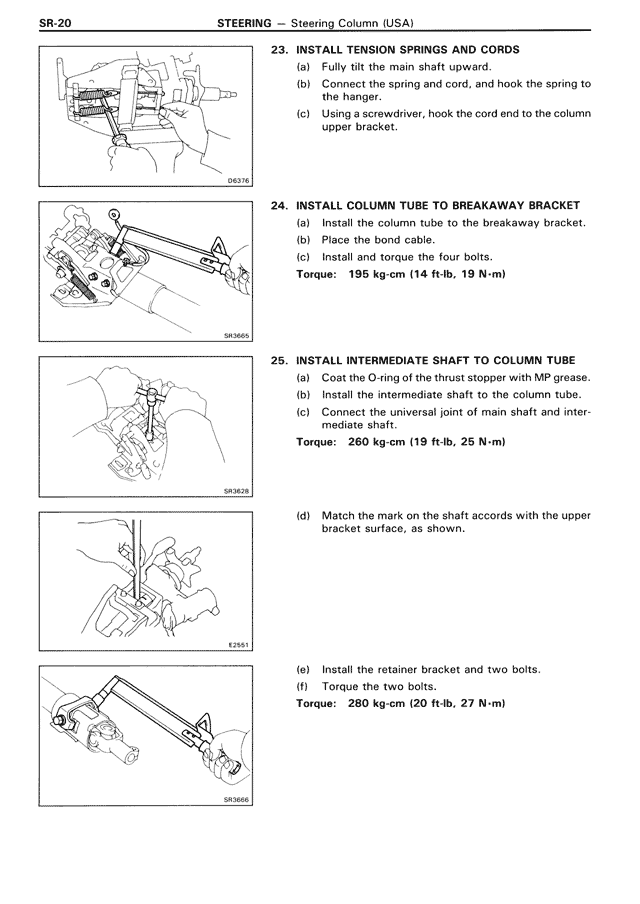

SR-20 STEERING - Steering Column (USA) 23. INSTALL TENSION SPRINGS AND CORDS (a) Fully tilt the main shaft upward. (b) Connect the spring and cord, and hook the spring to the hanger. (c) Using a screwdriver, hook the cord end to the column upper bracket. 24. INSTALL COLUMN TUBE TO BREAKAWAY BRACKET (a) Install the column tube to the breakaway bracket. (b) Place the bond cable. (c) Install and torque the four bolts. Torque: 195 kg·cm (14 ft·lb, 19 N·m) 25. INSTALL INTERMEDIATE SHAFT TO COLUMN TUBE (a) Coat the O-ring of the thrust stopper with MP grease. (b) Install the intermediate shaft to the column tube. (c) Connect the universal joint of main shaft and intermediate shaft. Torque: 260 kg·cm (19 ft·lb, 25 N·m) (d) Match the mark on the shaft accords with the upper bracket surface, as shown. (e) Install the retainer bracket and two bolts. (f) Torque the two bolts. Torque: 280 kg·cm (20 ft·lb, 27 N·m)
